Individual hose record

4216456 Hose Repair Specifications

Excavator · Hitachi · EX150 · Swivel Joint

Finished length1,250 mm

Locate this hose

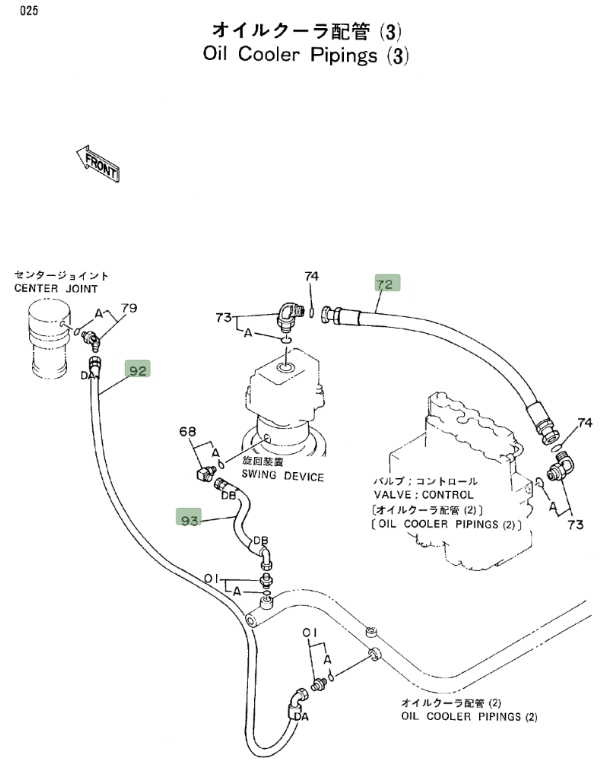

Installation diagram — Pipe No. 92

Locate Pipe No. 92 in the diagram, then confirm part number 4216456 before removing the hose.

Hitachi EX150 installation diagram showing hydraulic hose 4216456 at Pipe No. 92 — Hitachi EX150Part 4216456 · Pipe No. 92Open full-size diagram

Repair specifications

Part number: 4216456
Diagram pipe number: 92
Installation route: 回转接头~回油铁管(液压油箱)
Hose specification: DN10;1层纤维-6;14MPa
Finished length: 1,250 mm
Working pressure: 14 MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 90°美制内螺纹37°内锥
Quantity: 1
