Individual hose record

4334456 Hose Repair Specifications

Excavator · Hitachi · ZX210LC-6N · Swivel Joint

Finished length2,150 mm

Locate this hose

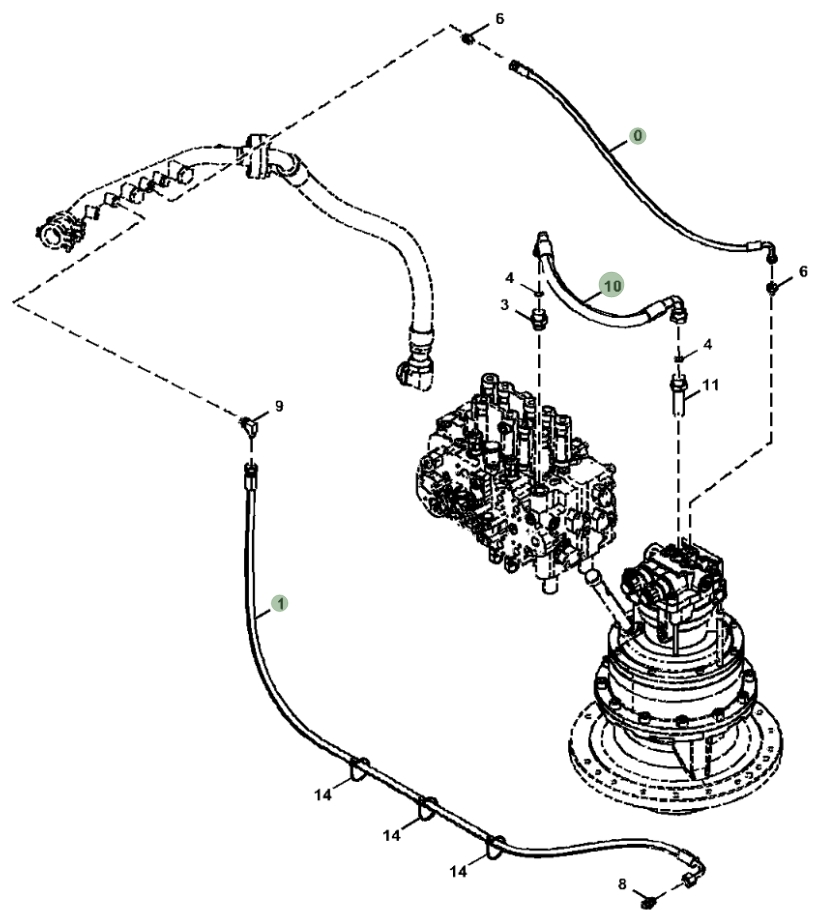

Installation diagram — Pipe No. 1

Locate Pipe No. 1 in the diagram, then confirm part number 4334456 before removing the hose.

Hitachi ZX210LC-6N installation diagram showing hydraulic hose 4334456 at Pipe No. 1 — **Hitachi ZX210LC-6N**Part 4334456 · Pipe No. 1Open full-size diagram

Repair specifications

Part number: 4334456
Diagram pipe number: 1
Installation route: 回转接头~回油铁管(液压油箱)
Hose specification: DN13;2SN-08;27.5MPa
Finished length: 2,150 mm
Working pressure: 27.5 MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 90°美制内螺纹74°内锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 0

4629655

Installation route: Swivel joint → travel motorOriginal Chinese: 回转接头~行走马达

Length: 2,000 mm
Specification: DN19;4SH-12;42MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 1

4629656

Installation route: Swivel joint → travel motorOriginal Chinese: 回转接头~行走马达

Length: 2,000 mm
Specification: DN19;4SH-12;42MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 8

4267667

Installation route: Swivel joint → travel motorOriginal Chinese: 回转接头~行走马达

Length: 2,300 mm
Specification: DN13;2SN-08;27.5MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 美制内螺纹74°内锥

View full repair specifications

Diagram Pipe No. 11

4449378

Installation route: Swivel joint → travel motorOriginal Chinese: 回转接头~行走马达

Length: 2,400 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 美制内螺纹74°内锥

View full repair specifications

Diagram Pipe No. 1

4632450

Installation route: Swivel joint → travel motorOriginal Chinese: 回转接头~行走马达

Length: 2,000 mm
Specification: DN19;4SH-12;42MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 11

4447566

Installation route: Swivel joint → travel motorOriginal Chinese: 回转接头~行走马达

Length: 2,200 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 美制内螺纹74°内锥

View full repair specifications

Diagram Pipe No. 4

4447490

Installation route: 回转接头~电磁阀

Length: 1,750 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 90°美制内螺纹74°内锥

View full repair specifications

Diagram Pipe No. 0

4632449

Installation route: Swivel joint → travel motorOriginal Chinese: 回转接头~行走马达

Length: 2,200 mm
Specification: DN19;4SH-12;42MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封

View full repair specifications
