Individual hose record
4630947 Hose Repair Specifications
Excavator · Hitachi · ZX300LC-6N · Control Valve
Finished length850 mm
Locate this hose

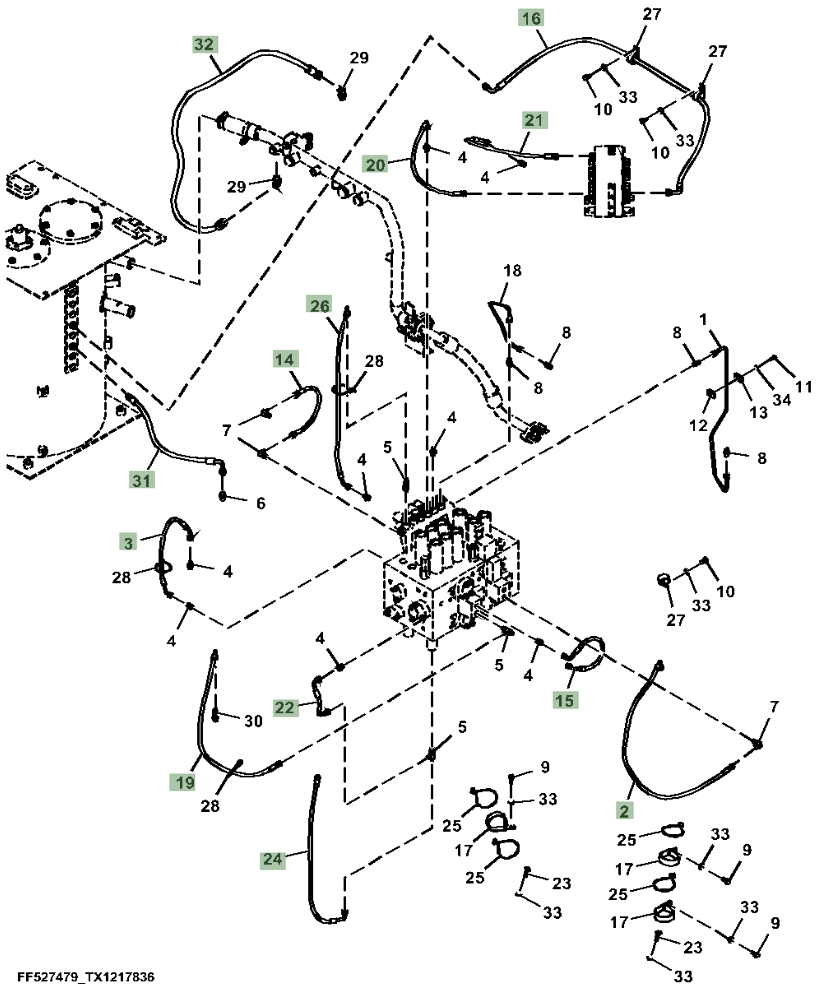

Installation diagram — Pipe No. 19
Locate Pipe No. 19 in the diagram, then confirm part number 4630947 before removing the hose.
Repair specifications
- Part number
- 4630947
- Diagram pipe number
- 19
- Installation route
- 分配阀左~电磁阀
- Hose specification
- DN6;1SN-04;7Mpa
- Finished length
- 850 mm
- Working pressure
- 7 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 90°美制内螺纹37°内锥
- Quantity
- 1
