Individual hose record

730501005429 Hose Repair Specifications

Excavator · Sunward · SWE155F · Hydraulic Pump

Finished length690 mm

Locate this hose

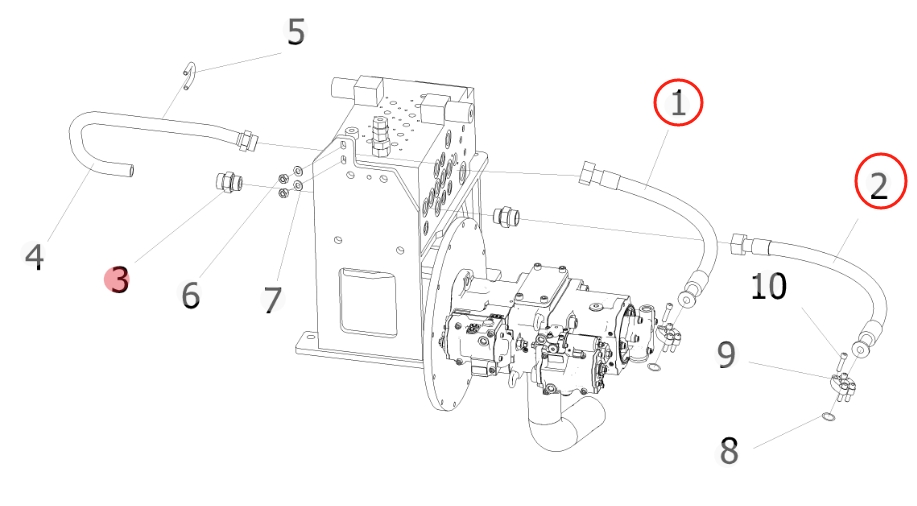

Installation diagram — Pipe No. 2

Locate Pipe No. 2 in the diagram, then confirm part number 730501005429 before removing the hose.

Sunward SWE155F installation diagram showing hydraulic hose 730501005429 at Pipe No. 2 — Sunward SWE155FPart 730501005429 · Pipe No. 2Open full-size diagram

Repair specifications

Part number: 730501005429
Diagram pipe number: 2
Installation route: 液压泵~分配阀前
Hose specification: DN20;6SH-12;35MPa
Finished length: 690 mm
Working pressure: 35 MPa
Left fitting: Heavy-series flangeOriginal Chinese: 法兰-重型
Right fitting: 公制内螺纹24°锥带O形圈-重型
Quantity: 1
