Individual hose record

730502006196 Hose Repair Specifications

Excavator · Sunward · SWE155F · Hydraulic Pump

Finished length570 mm

Locate this hose

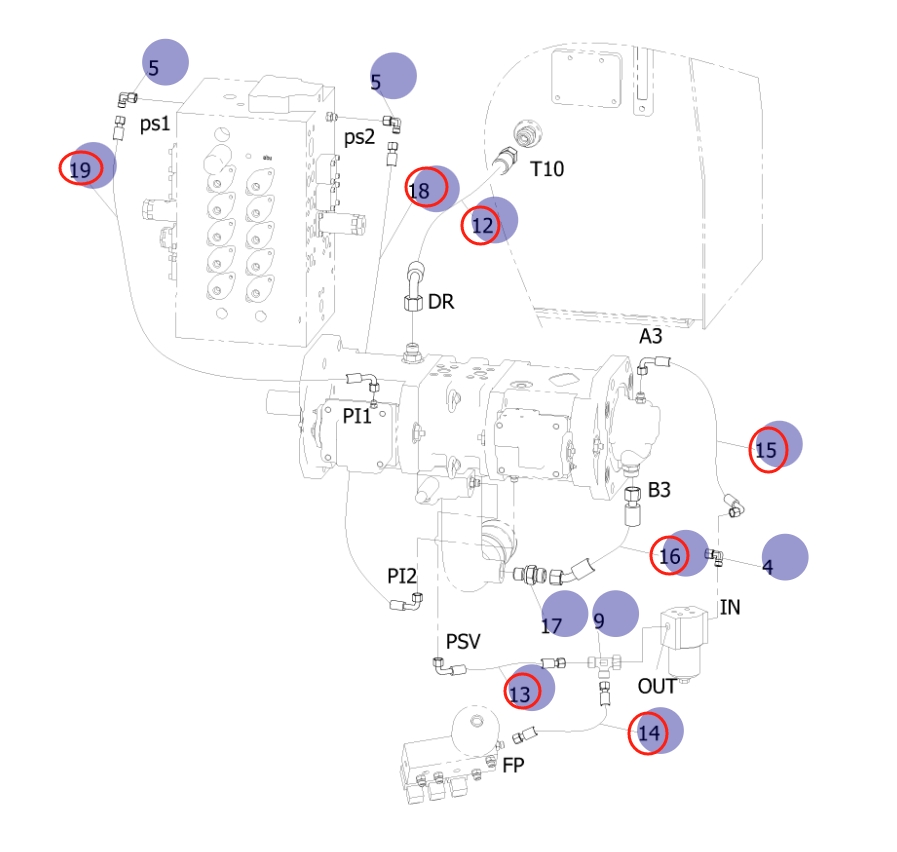

Installation diagram — Pipe No. 12

Locate Pipe No. 12 in the diagram, then confirm part number 730502006196 before removing the hose.

Sunward SWE155F installation diagram showing hydraulic hose 730502006196 at Pipe No. 12 — Sunward SWE155FPart 730502006196 · Pipe No. 12Open full-size diagram

Repair specifications

Part number: 730502006196
Diagram pipe number: 12
Installation route: 液压泵DR~液压油箱T10
Hose specification: DN16;1SN-10;13.8MPa
Finished length: 570 mm
Working pressure: 13.8 MPa
Left fitting: 公制内螺纹24°锥带O形圈-轻型
Right fitting: 90°公制内螺纹24°锥带O形圈-轻型
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 1

730501005428

Installation route: 液压泵~分配阀前

Length: 650 mm
Specification: DN20;6SH-12;35MPa
Left fitting: Heavy-series flangeOriginal Chinese: 法兰-重型
Right fitting: 公制内螺纹24°锥带O形圈-重型

View full repair specifications

Diagram Pipe No. 13

730502002947

Installation route: 液压泵PSV~液压油滤清器(OUT)

Length: 830 mm
Specification: DN8;1SN-05;22.5MPa
Left fitting: 公制内螺纹24°锥带O形圈-轻型
Right fitting: 90°公制内螺纹24°锥带O形圈-轻型

View full repair specifications

Diagram Pipe No. 15

73050200A086

Installation route: 液压泵A3~液压油滤清器(IN)

Length: 590 mm
Specification: DN8;1SN-05;22.5MPa
Left fitting: 公制内螺纹24°锥带O形圈-轻型
Right fitting: 90°公制内螺纹24°锥带O形圈-轻型

View full repair specifications

Diagram Pipe No. 2

730501005429

Installation route: 液压泵~分配阀前

Length: 690 mm
Specification: DN20;6SH-12;35MPa
Left fitting: Heavy-series flangeOriginal Chinese: 法兰-重型
Right fitting: 公制内螺纹24°锥带O形圈-重型

View full repair specifications

Diagram Pipe No. 19

730502001301

Installation route: 液压泵PI1~分配阀右PS1

Length: 2,100 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 公制内螺纹24°锥带O形圈-轻型
Right fitting: 90°公制内螺纹24°锥带O形圈-轻型

View full repair specifications

Diagram Pipe No. 1

730501005428

Installation route: 液压泵~分配阀(进油)

Length: 650 mm
Specification: DN20;6SH-12;35MPa
Left fitting: Heavy-series flangeOriginal Chinese: 法兰-重型
Right fitting: 公制内螺纹24°锥带O形圈-重型

View full repair specifications

Diagram Pipe No. 18

730502000376

Installation route: 液压泵PI2~分配阀左PS2

Length: 1,750 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 公制内螺纹24°锥带O形圈-轻型
Right fitting: 90°公制内螺纹24°锥带O形圈-轻型

View full repair specifications
