FF518390 Hose Repair Specifications

Excavator · Hitachi · ZX85USB-5N · Attachments – Breaker

Finished length860 mm

Locate this hose

Installation diagram — Pipe No. 29

Locate Pipe No. 29 in the diagram, then confirm part number FF518390 before removing the hose.

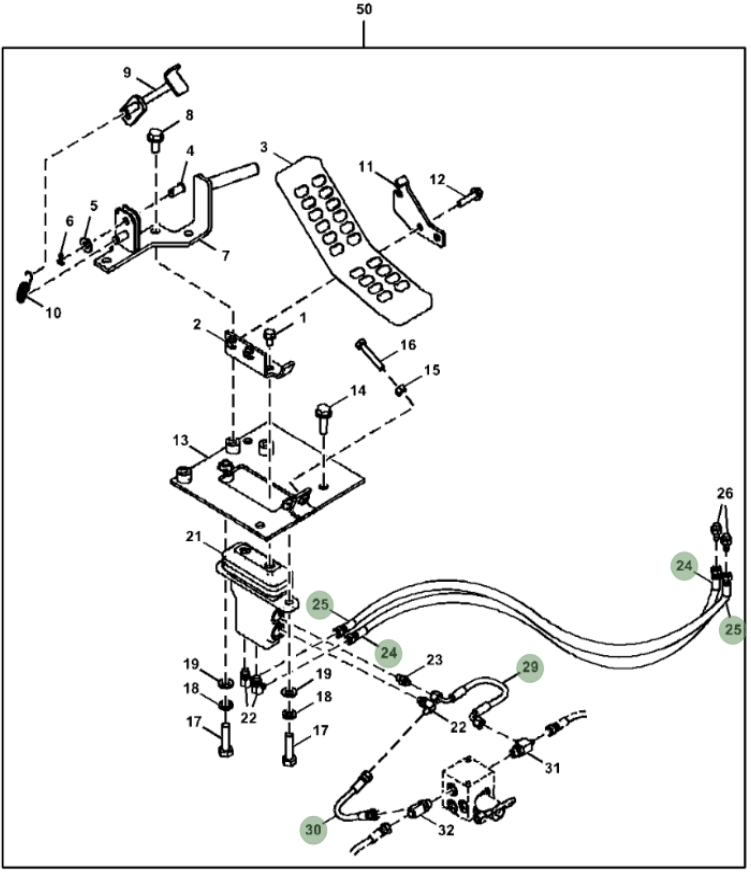

Hitachi ZX85USB-5N installation diagram showing hydraulic hose FF518390 at Pipe No. 29 — Hitachi ZX85USB-5NPart FF518390 · Pipe No. 29Open full-size diagram

Repair specifications

Part number: FF518390
Diagram pipe number: 29
Installation route: 破碎器踏板~进回油阀
Hose specification: DN6;1SN-4;7Mpa
Finished length: 860 mm
Working pressure: 7 MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 90°美制内螺纹37°内锥
Quantity: 1
