Individual hose record

4627868 Hose Repair Specifications

Excavator · Hitachi · ZX85USB-5N · Attachments – Breaker

Finished length300 mm

Locate this hose

Installation diagram — Pipe No. 7

Locate Pipe No. 7 in the diagram, then confirm part number 4627868 before removing the hose.

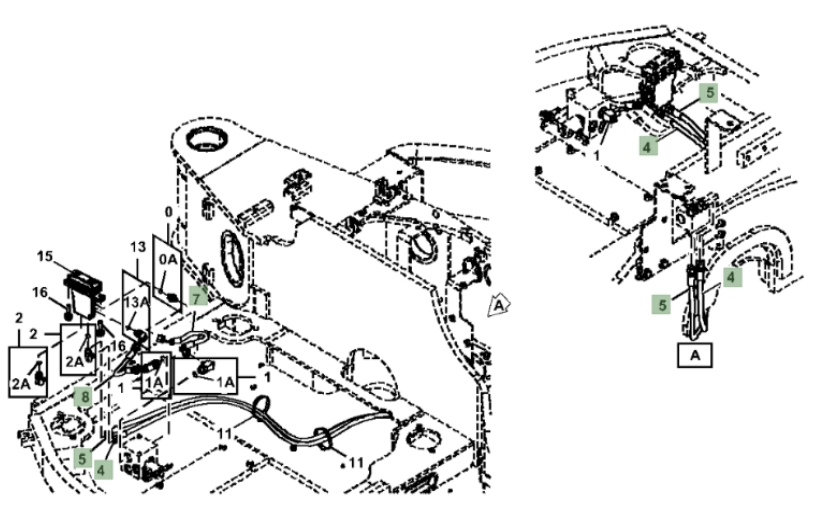

Hitachi ZX85USB-5N installation diagram showing hydraulic hose 4627868 at Pipe No. 7 — Hitachi ZX85USB-5NPart 4627868 · Pipe No. 7Open full-size diagram

Repair specifications

Part number: 4627868
Diagram pipe number: 7
Installation route: 破碎器踏板~进回油阀
Hose specification: DN6;1SN-04;7Mpa
Finished length: 300 mm
Working pressure: 7 MPa
Left fitting: 90°美制内螺纹37°内锥
Right fitting: 90°美制内螺纹37°内锥
Quantity: 1
