Individual hose record
4628911 Hose Repair Specifications
Excavator · Hitachi · ZX290F-3 · Control Valve
Finished length430 mm
Locate this hose

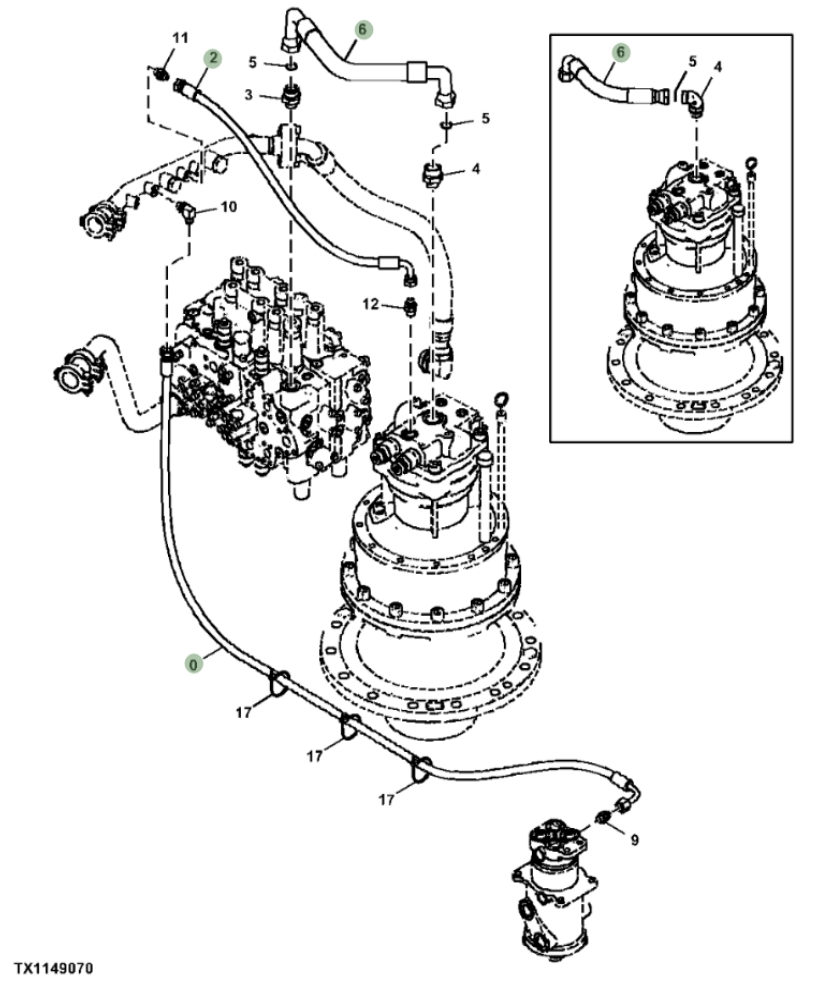

Installation diagram — Pipe No. 6
Locate Pipe No. 6 in the diagram, then confirm part number 4628911 before removing the hose.
Repair specifications
- Part number
- 4628911
- Diagram pipe number
- 6
- Installation route
- 分配阀上~回转马达(回油)
- Hose specification
- DN25;1SN-16;8.8MPa
- Finished length
- 430 mm
- Working pressure
- 8.8 MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封
- Quantity
- 1
