Individual hose record
9272256 Hose Repair Specifications
Excavator · Hitachi · ZX135US-3 · Hydraulic Pump
Finished length2,350 mm
Locate this hose

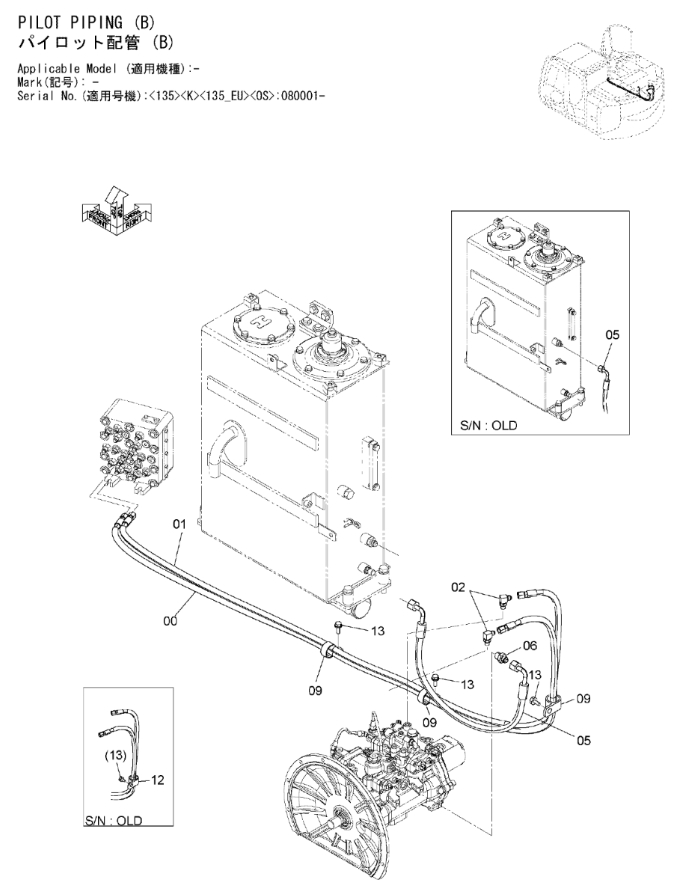

Installation diagram — Pipe No. 1
Locate Pipe No. 1 in the diagram, then confirm part number 9272256 before removing the hose.
Repair specifications
- Part number
- 9272256
- Diagram pipe number
- 1
- Installation route
- 液压泵~中转接头
- Hose specification
- DN10;1SN-6;7Mpa
- Finished length
- 2,350 mm
- Working pressure
- 7 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
- Quantity
- 1
