Individual hose record
4227025 Hose Repair Specifications
Excavator · Hitachi · ZX135US-3 · Hydraulic Pump
Finished length600 mm
Locate this hose

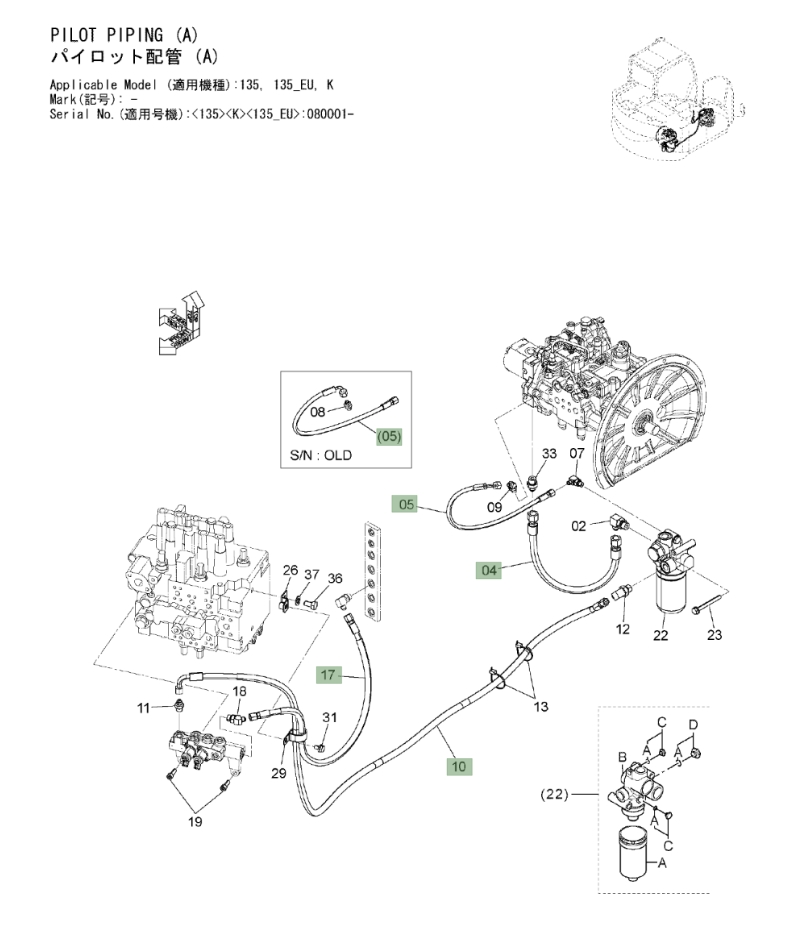

Installation diagram — Pipe No. 4
Locate Pipe No. 4 in the diagram, then confirm part number 4227025 before removing the hose.
Repair specifications
- Part number
- 4227025
- Diagram pipe number
- 4
- Installation route
- 液压泵~先导滤芯
- Hose specification
- DN12;1SN-8;7Mpa
- Finished length
- 600 mm
- Working pressure
- 7 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
- Quantity
- 1
