Individual hose record
4644144 Hose Repair Specifications
Excavator · Hitachi · ZX190W-5N · Control Lever
Finished length2,400 mm
Locate this hose

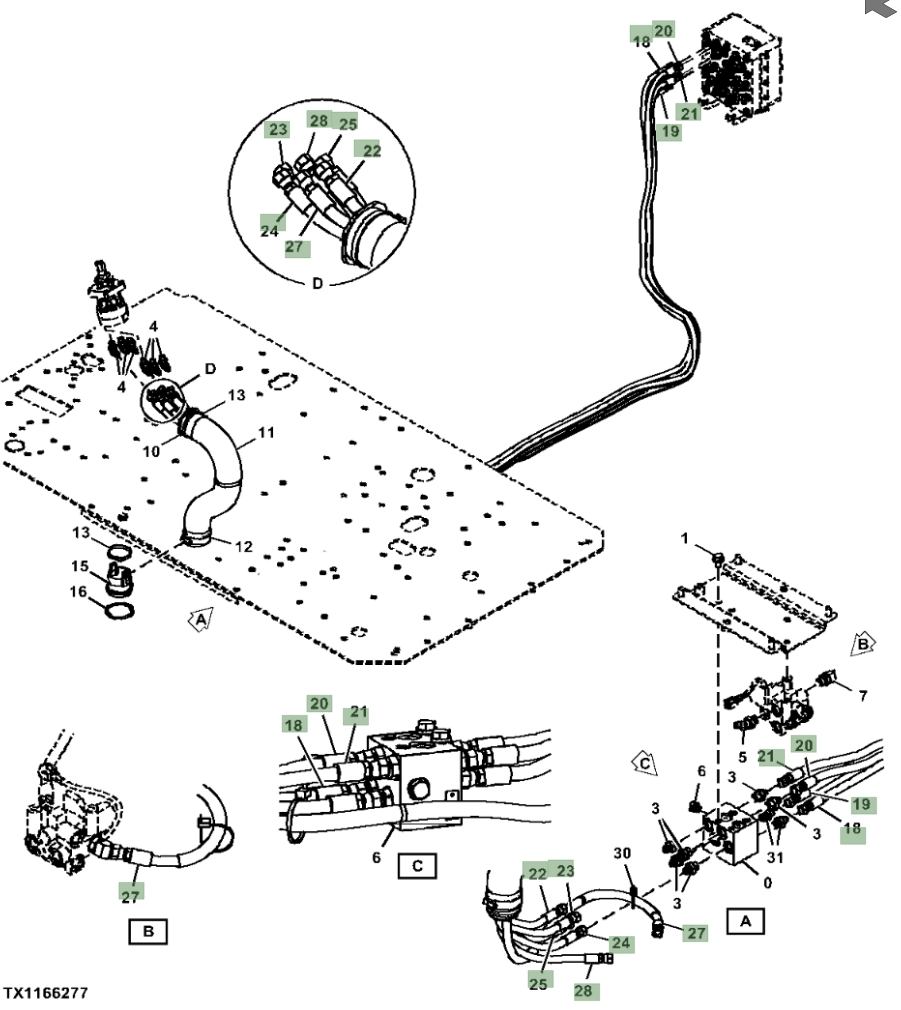

Installation diagram — Pipe No. 19
Locate Pipe No. 19 in the diagram, then confirm part number 4644144 before removing the hose.
Repair specifications
- Part number
- 4644144
- Diagram pipe number
- 19
- Installation route
- 中转接头~过渡阀块(手柄)
- Hose specification
- DN10;1SN-6;7Mpa
- Finished length
- 2,400 mm
- Working pressure
- 7 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
- Quantity
- 1
