Individual hose record
4635246 Hose Repair Specifications
Excavator · Hitachi · ZX190W-5N · Control Lever
Finished length2,900 mm
Locate this hose

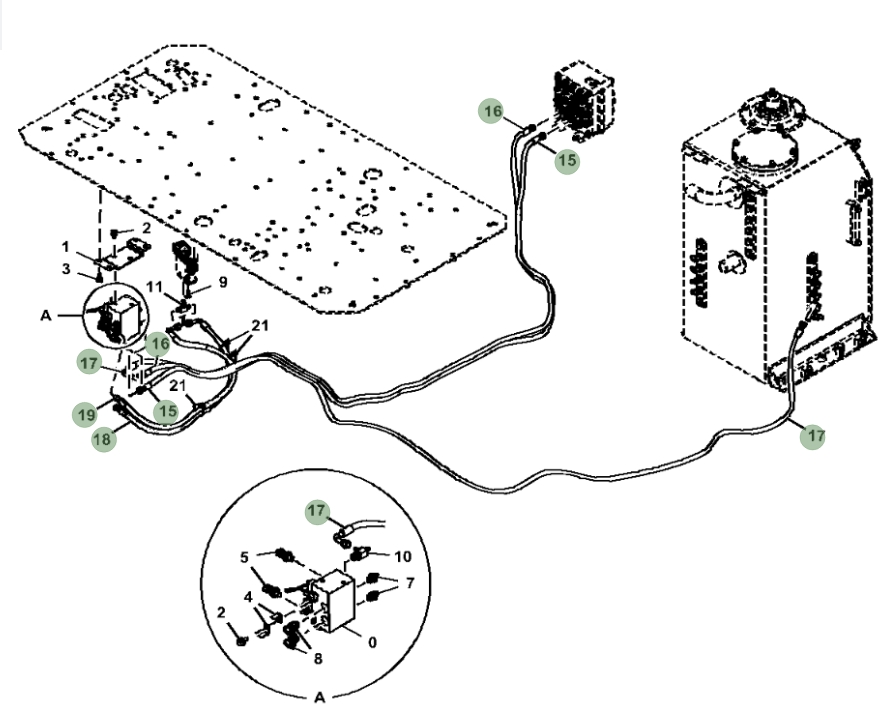

Installation diagram — Pipe No. 16
Locate Pipe No. 16 in the diagram, then confirm part number 4635246 before removing the hose.
Repair specifications
- Part number
- 4635246
- Diagram pipe number
- 16
- Installation route
- 中转接头~电磁阀(踏板)
- Hose specification
- DN10;1SN-06;18MPa
- Finished length
- 2,900 mm
- Working pressure
- 18 MPa
- Left fitting
- 美制内螺纹74°内锥
- Right fitting
- 美制内螺纹74°内锥
- Quantity
- 1
