Individual hose record
4647678 Hose Repair Specifications
Excavator · Hitachi · ZX210F-3 · Hydraulic Pump
Finished length350 mm
Locate this hose

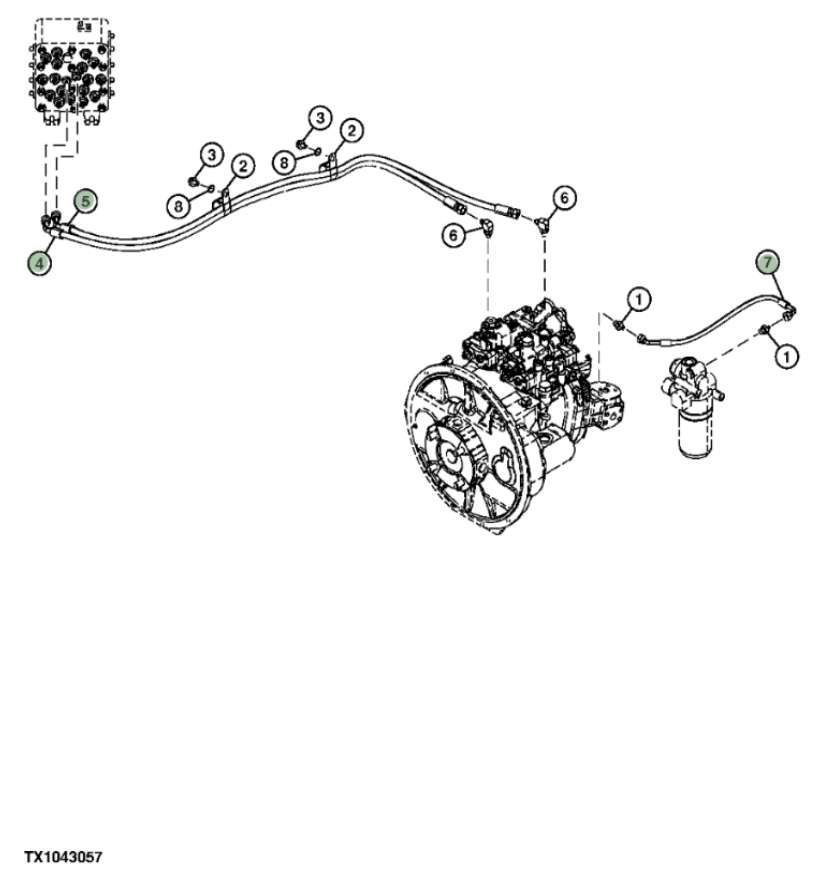

Installation diagram — Pipe No. 7
Locate Pipe No. 7 in the diagram, then confirm part number 4647678 before removing the hose.
Repair specifications
- Part number
- 4647678
- Diagram pipe number
- 7
- Installation route
- 先导泵~先导滤芯
- Hose specification
- DN6;1SN-04;22.5MPa
- Finished length
- 350 mm
- Working pressure
- 22.5 MPa
- Left fitting
- 90°美制内螺纹74°内锥
- Right fitting
- 45°美制内螺纹74°内锥
- Quantity
- 1
