Individual hose record

KHJ2087 Hose Repair Specifications

Excavator · Case · CX80C · Control Valve

Finished length800 mm

Locate this hose

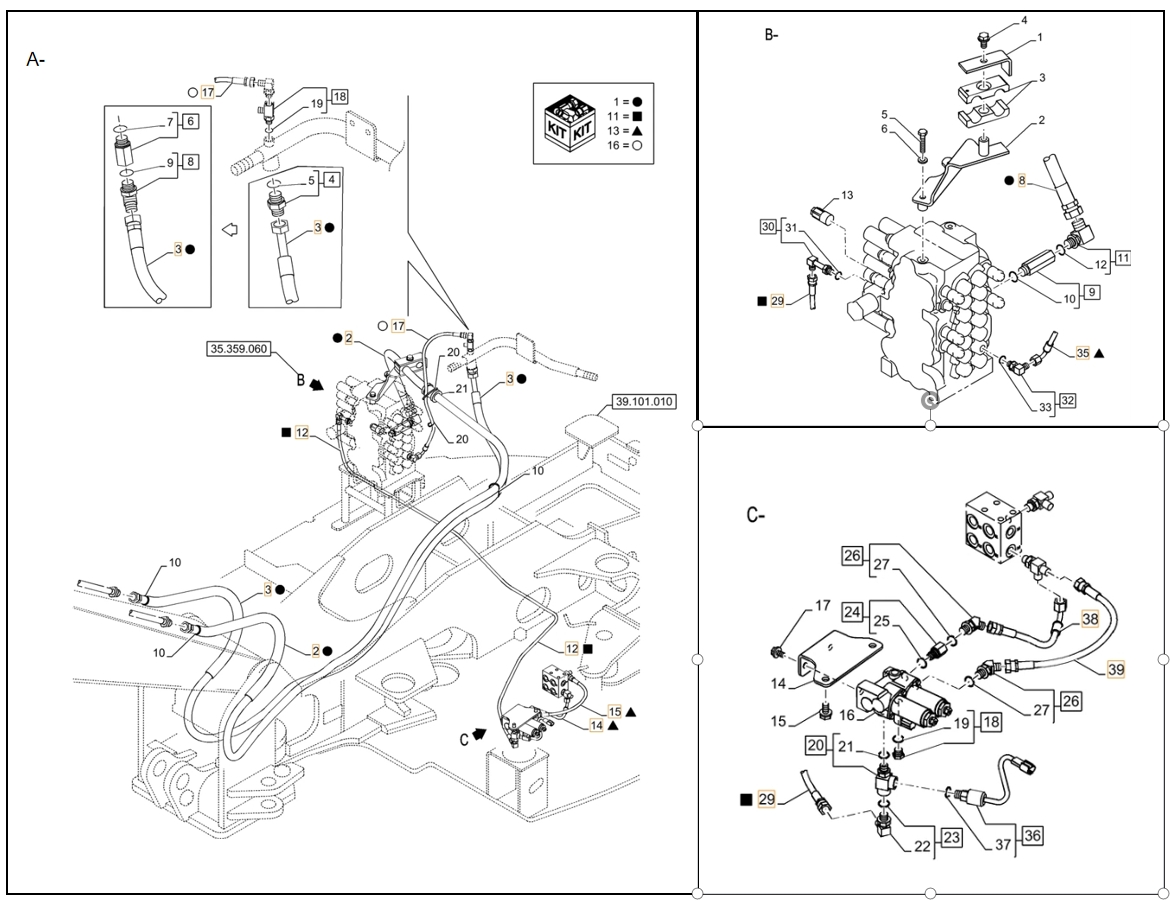

Installation diagram — Pipe No. 17

Locate Pipe No. 17 in the diagram, then confirm part number KHJ2087 before removing the hose.

Part number: KHJ2087
Diagram pipe number: 17
Installation route: 分配阀左~回油铁管
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 800 mm
Working pressure: 22.5 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
Quantity: 1

Same system

Diagram Pipe No. A62-H25

Installation route: 分配阀左~回油铁管

Length: 650 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥

Diagram Pipe No. 47

Installation route: 分配阀左~分配阀右

Length: 900 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

Diagram Pipe No. 21

Installation route: 分配阀左~分配阀左

Length: 320 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

Diagram Pipe No. H9-K32

Installation route: 分配阀左~缓冲阀

Length: 2,500 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
