Individual hose record

KHJ2327 Hose Repair Specifications

Excavator · Case · CX225SR · Attachments – Breaker

Finished length1,550 mm

Locate this hose

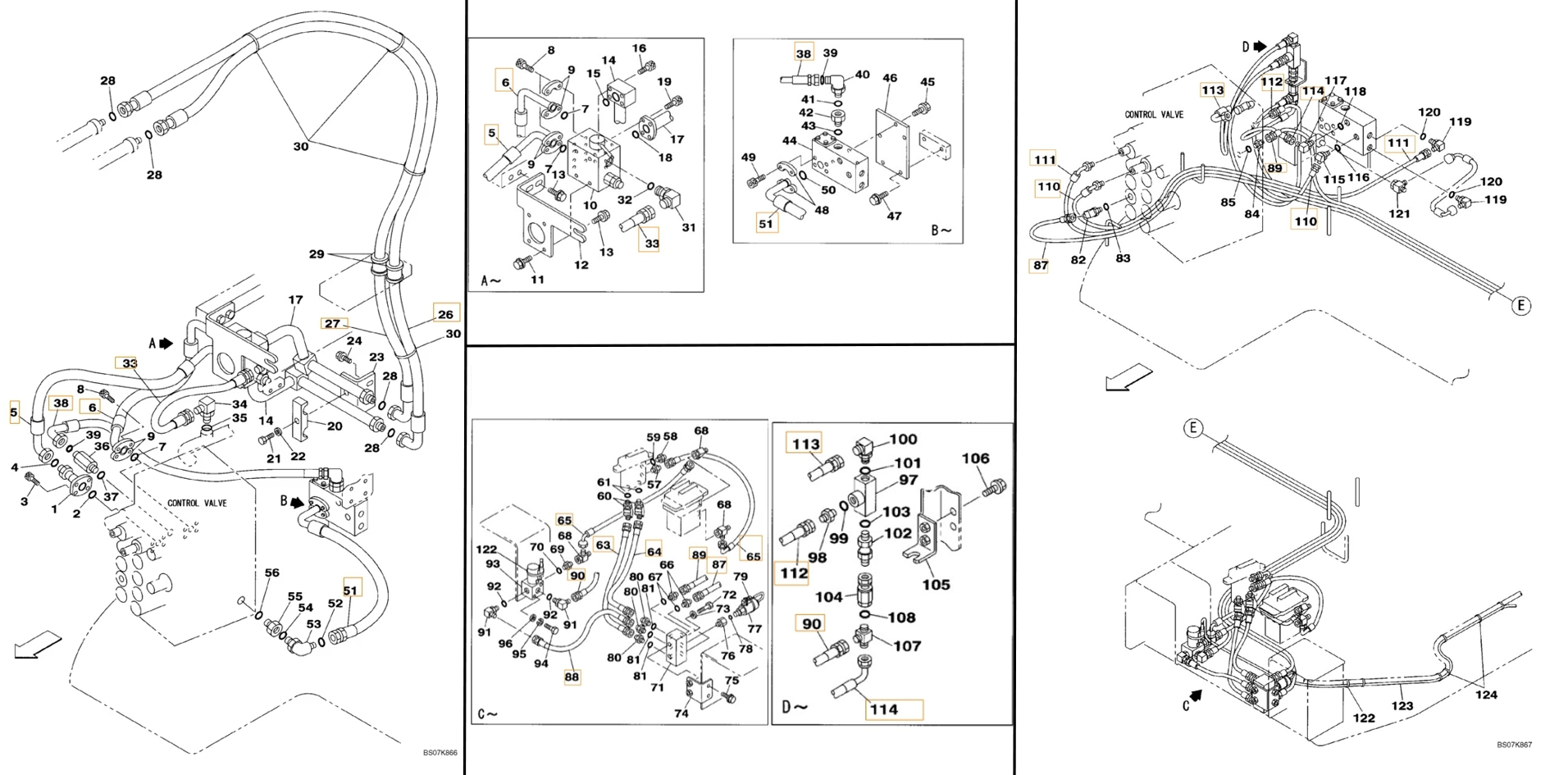

Installation diagram — Pipe No. 111

Locate Pipe No. 111 in the diagram, then confirm part number KHJ2327 before removing the hose.

Part number: KHJ2327
Diagram pipe number: 111
Installation route: 左过渡阀块(破碎器)~分配阀前
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 1,550 mm
Working pressure: 22.5 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
Quantity: 1

Same system

Diagram Pipe No. 89

Installation route: 过渡阀(破碎器踏板)~分配阀后

Length: 2,950 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥

Diagram Pipe No. 114

Installation route: 过渡接头(破碎器)~分配阀后

Length: 550 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
