- Length
- 630 mm
- Specification
- DN13;4SP-08;41.5MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Individual hose record
DS2053831 Hose Repair Specifications
Excavator · Doosan · DX80R · Boom Assembly
Finished length720 mm
Locate this hose

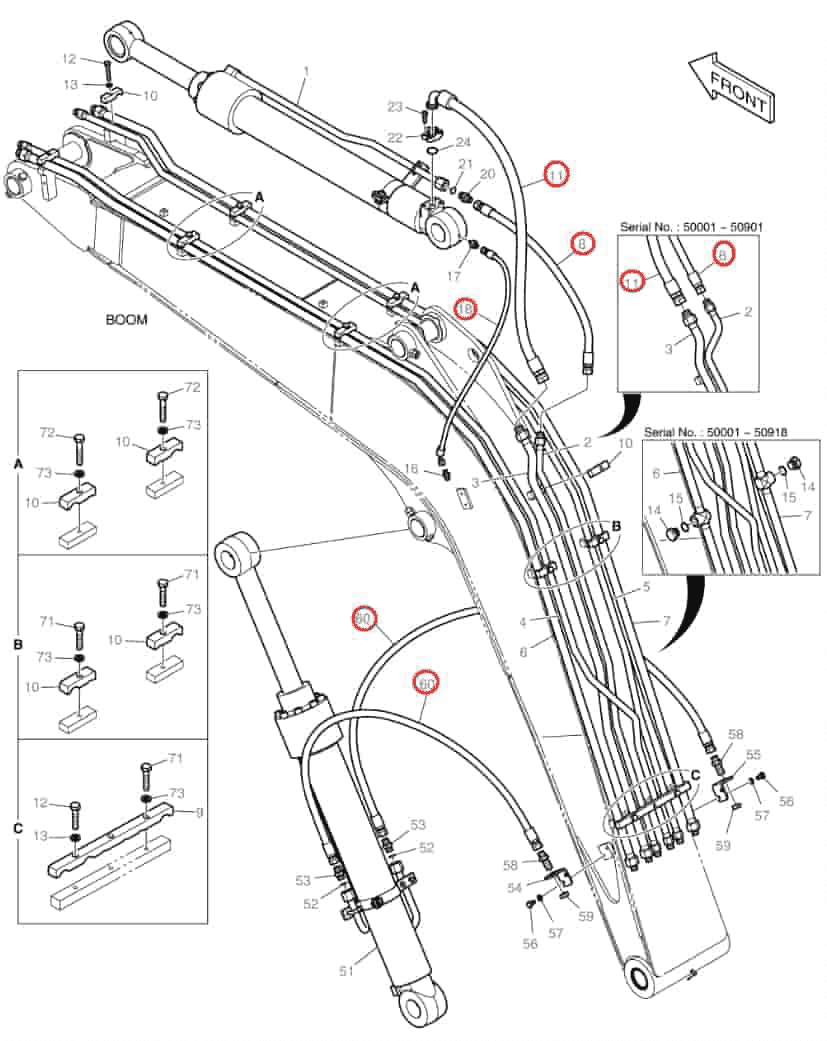

Installation diagram — Pipe No. 8
Locate Pipe No. 8 in the diagram, then confirm part number DS2053831 before removing the hose.
Repair specifications
- Part number
- DS2053831
- Diagram pipe number
- 8
- Installation route
- Arm cylinder — rightOriginal Chinese: 小臂油缸右
- Hose specification
- DN13;4SP-08;41.5MPa
- Finished length
- 720 mm
- Working pressure
- 41.5 MPa
- Left fitting
- British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
- Right fitting
- British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
- Quantity
- 1
