Individual hose record
4315873 Hose Repair Specifications
Excavator · Hitachi · EX400LC-3 · Control Lever
Finished length1,950 mm
Locate this hose

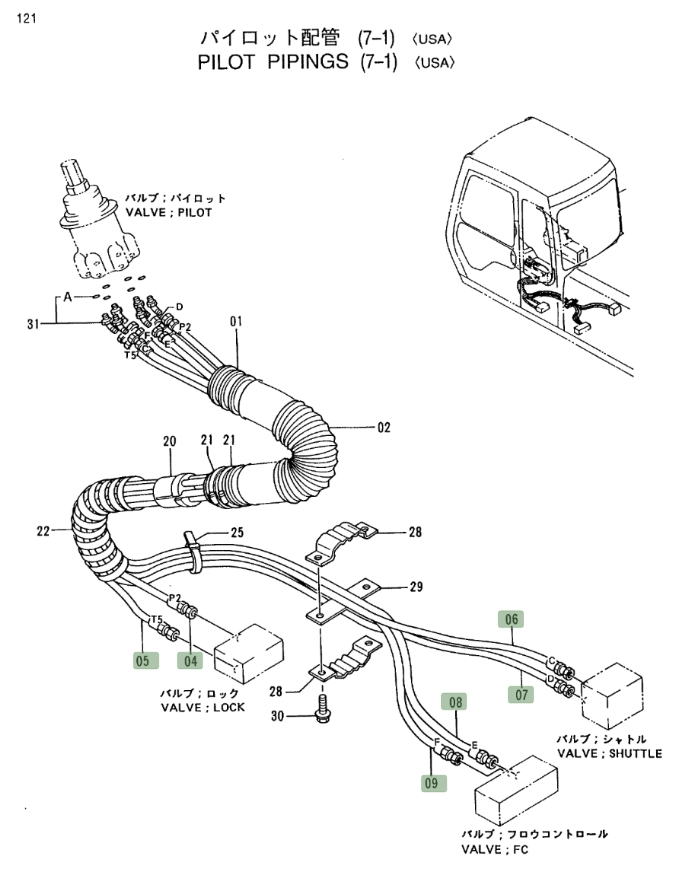

Installation diagram — Pipe No. 9
Locate Pipe No. 9 in the diagram, then confirm part number 4315873 before removing the hose.
Repair specifications
- Part number
- 4315873
- Diagram pipe number
- 9
- Installation route
- 左手柄~中转接头(手柄)
- Hose specification
- DN10;1SN-06;18MPa
- Finished length
- 1,950 mm
- Working pressure
- 18 MPa
- Left fitting
- 美制内螺纹74°内锥
- Right fitting
- 美制内螺纹74°内锥
- Quantity
- 1
