Individual hose record

4203088 Hose Repair Specifications

Excavator · Hitachi · EX270LC · Hydraulic Tank

Finished length1,650 mm

Locate this hose

Installation diagram — Pipe No. 10

Locate Pipe No. 10 in the diagram, then confirm part number 4203088 before removing the hose.

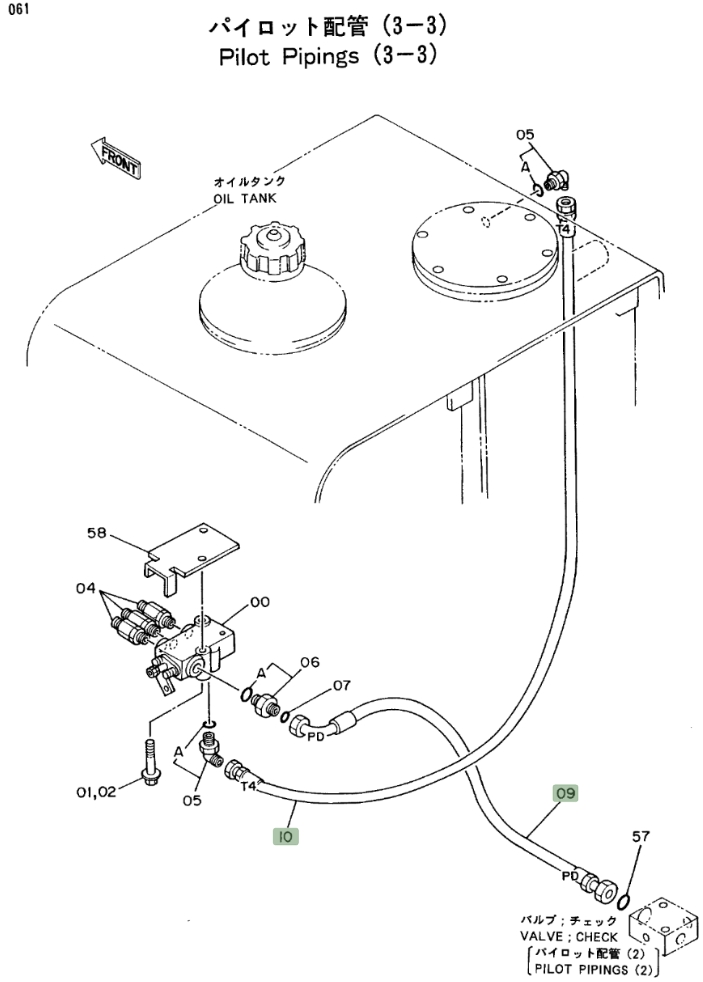

Hitachi EX270LC installation diagram showing hydraulic hose 4203088 at Pipe No. 10 — Hitachi EX270LCPart 4203088 · Pipe No. 10Open full-size diagram

Repair specifications

Part number: 4203088
Diagram pipe number: 10
Installation route: 液压油箱~进回油阀
Hose specification: DN10;1层纤维-6;14MPa
Finished length: 1,650 mm
Working pressure: 14 MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥
Quantity: 1
