Individual hose record

730502003778 Hose Repair Specifications

Excavator · Sunward · SWE205E-3H · Control Valve

Finished length340 mm

Locate this hose

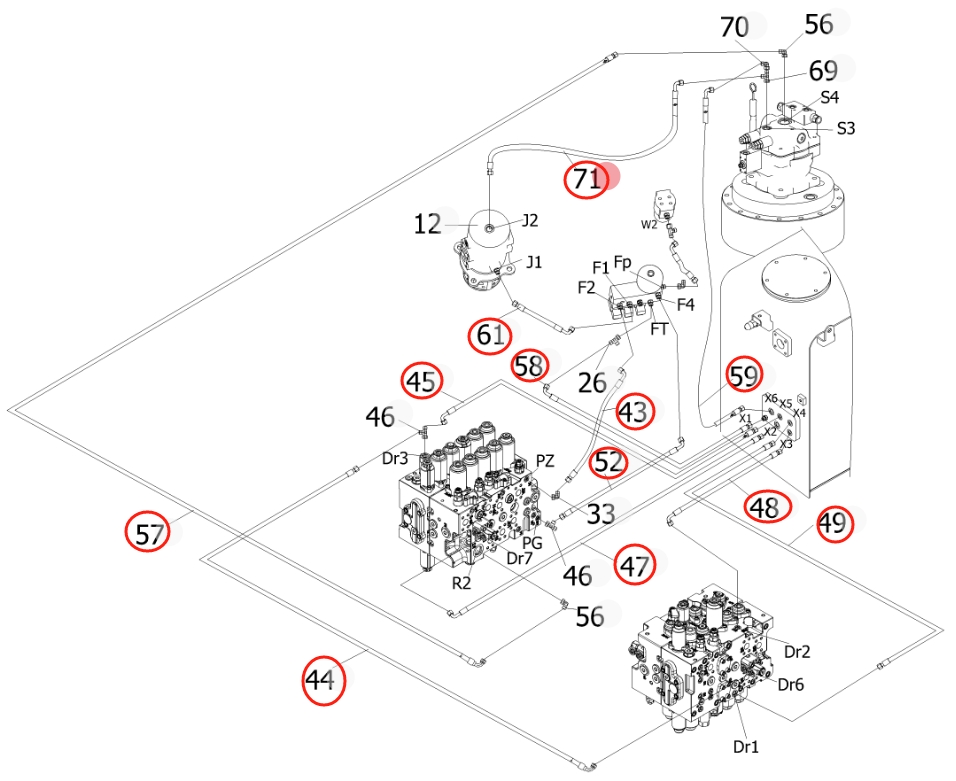

Installation diagram — Pipe No. 44

Locate Pipe No. 44 in the diagram, then confirm part number 730502003778 before removing the hose.

Sunward SWE205E-3H installation diagram showing hydraulic hose 730502003778 at Pipe No. 44
Sunward SWE205E-3HPart 730502003778 · Pipe No. 44Open full-size diagram

Repair specifications

Part number
730502003778
Diagram pipe number
44
Installation route
分配阀上DR3~分配阀前DR1
Hose specification
DN6;1SN-04;22.5MPa
Finished length
340 mm
Working pressure
22.5 MPa
Left fitting
公制内螺纹24°锥带O形圈-轻型
Right fitting
90°公制内螺纹24°锥带O形圈-轻型
Quantity
1

Same system

Related Hoses

Diagram Pipe No. 28

730501000450

Installation route: 分配阀上XBA1~分配阀后PAl

Length
360 mm
Specification
DN8;1SN-05;22.5MPa
Left fitting
公制内螺纹24°锥带O形圈-轻型
Right fitting
公制内螺纹24°锥带O形圈-轻型
View full repair specifications

Diagram Pipe No. 38

730502001409

Installation route: 分配阀下PSP~分配阀前PNS

Length
400 mm
Specification
DN8;1SN-05;22.5MPa
Left fitting
公制内螺纹24°锥带O形圈-轻型
Right fitting
90°公制内螺纹24°锥带O形圈-轻型
View full repair specifications

Diagram Pipe No. 55

730502000355

Installation route: 分配阀后PX~回转马达

Length
930 mm
Specification
DN6;1SN-04;22.5MPa
Left fitting
公制内螺纹24°锥带O形圈-轻型
Right fitting
90°公制内螺纹24°锥带O形圈-轻型
View full repair specifications
