Individual hose record
730502000355 Hose Repair Specifications
Excavator · Sunward · SWE205E-3H · Control Valve
Finished length930 mm
Locate this hose

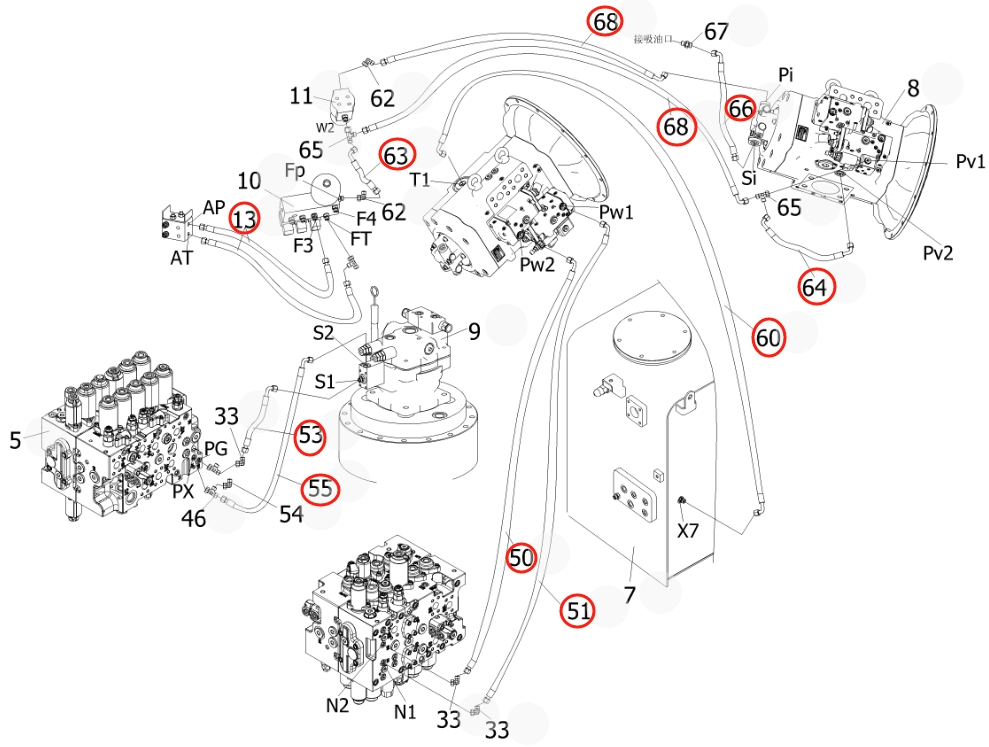

Installation diagram — Pipe No. 55
Locate Pipe No. 55 in the diagram, then confirm part number 730502000355 before removing the hose.
Repair specifications
- Part number
- 730502000355
- Diagram pipe number
- 55
- Installation route
- 分配阀后PX~回转马达
- Hose specification
- DN6;1SN-04;22.5MPa
- Finished length
- 930 mm
- Working pressure
- 22.5 MPa
- Left fitting
- 公制内螺纹24°锥带O形圈-轻型
- Right fitting
- 90°公制内螺纹24°锥带O形圈-轻型
- Quantity
- 1
