- Length
- 980 mm
- Specification
- DN16;4SP-10;38MPa
- Left fitting
- Light-series flangeOriginal Chinese: 法兰-轻型
- Right fitting
- 45°法兰-轻型
Individual hose record
KRJ10750 Hose Repair Specifications
Excavator · Case · CX130C LC · Hydraulic Pump
Finished length650 mm
Locate this hose

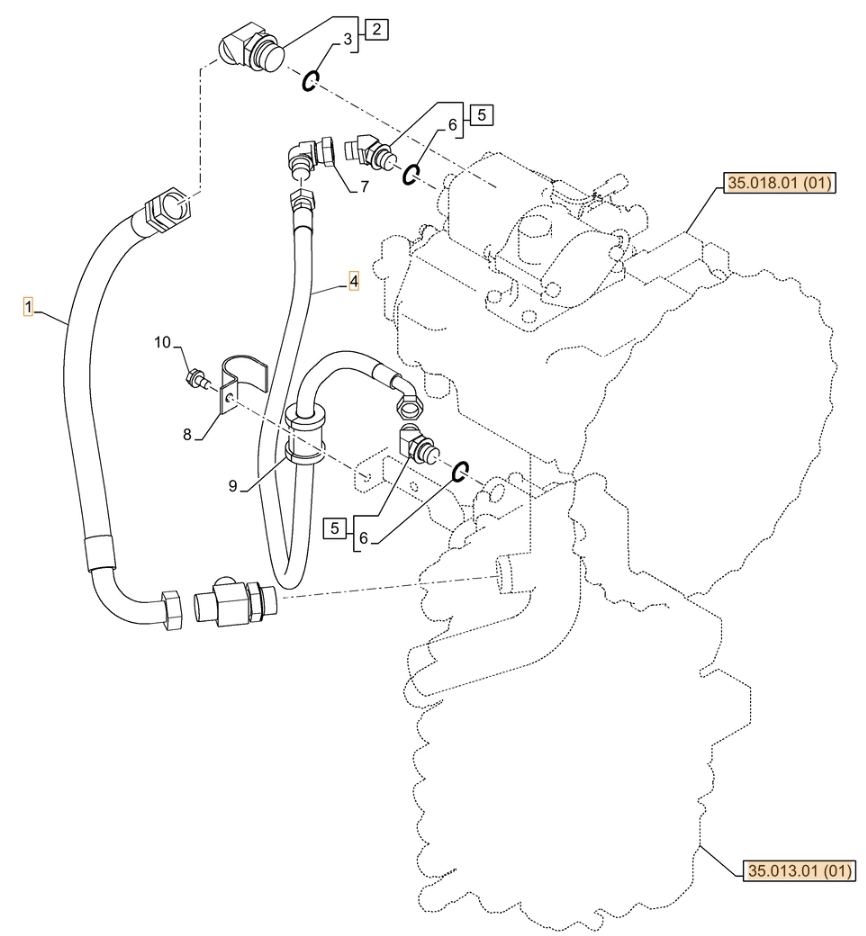

Installation diagram — Pipe No. 1
Locate Pipe No. 1 in the diagram, then confirm part number KRJ10750 before removing the hose.
Repair specifications
- Part number
- KRJ10750
- Diagram pipe number
- 1
- Installation route
- 液压泵~吸油铁管
- Hose specification
- DN25;2SN-16;16.5MPa
- Finished length
- 650 mm
- Working pressure
- 16.5 MPa
- Left fitting
- British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
- Right fitting
- 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
- Quantity
- 1
