Individual hose record
KNJ11480 Hose Repair Specifications
Excavator · Case · CX130C LC · Hydraulic Pump
Finished length980 mm
Locate this hose

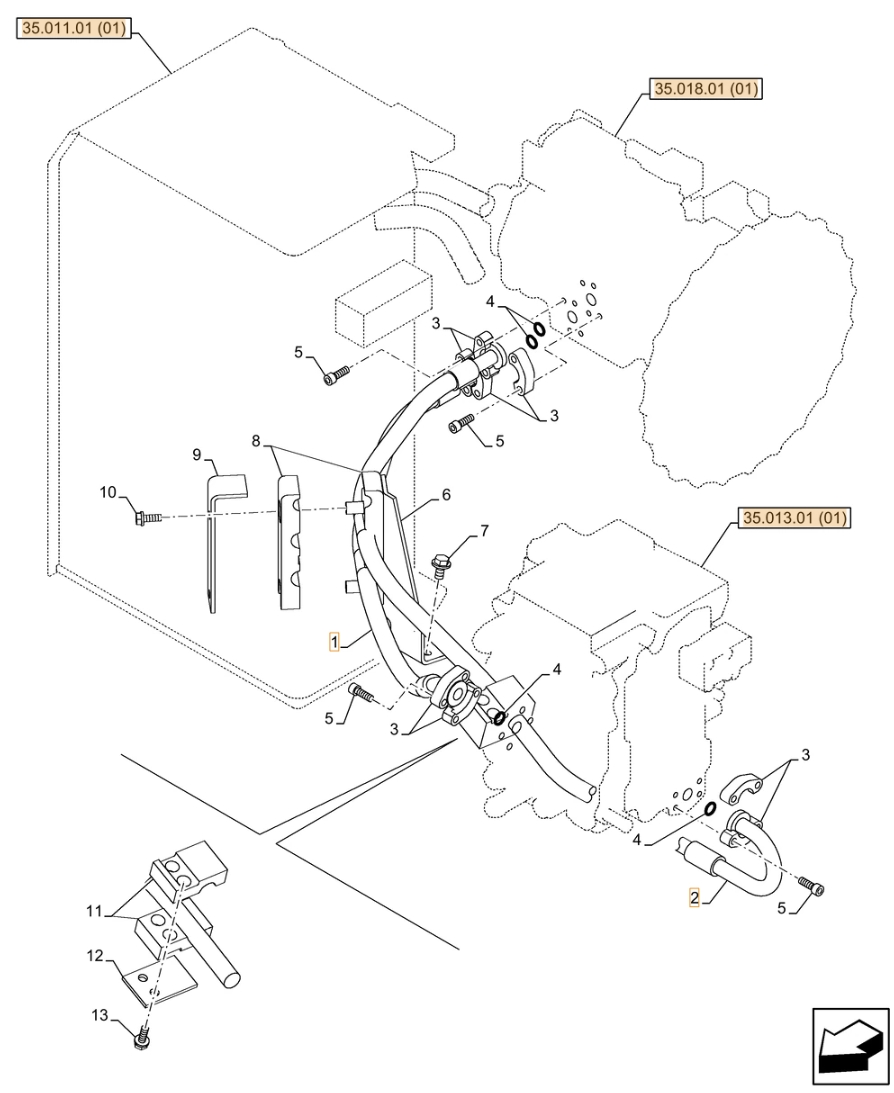

Installation diagram — Pipe No. 1
Locate Pipe No. 1 in the diagram, then confirm part number KNJ11480 before removing the hose.
Repair specifications
- Part number
- KNJ11480
- Diagram pipe number
- 1
- Installation route
- 液压泵~分配阀(进油)
- Hose specification
- DN16;4SP-10;38MPa
- Finished length
- 980 mm
- Working pressure
- 38 MPa
- Left fitting
- Light-series flangeOriginal Chinese: 法兰-轻型
- Right fitting
- 45°法兰-轻型
- Quantity
- 1
