Individual hose record

2184-1026D407 Hose Repair Specifications

Excavator · Doosan · DX80R · Control Valve

Finished length1,600 mm

Locate this hose

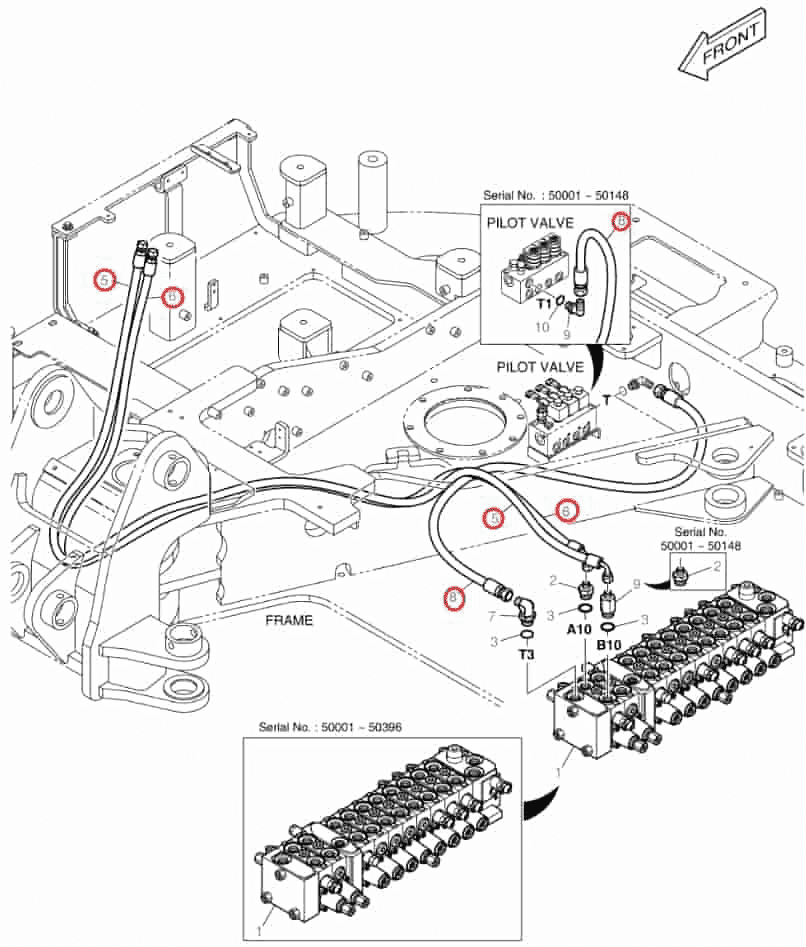

Installation diagram — Pipe No. 8

Locate Pipe No. 8 in the diagram, then confirm part number 2184-1026D407 before removing the hose.

Part number: 2184-1026D407
Diagram pipe number: 8
Installation route: 分配阀T3口~先导阀T口
Hose specification: DN13;2SN-08;27.5MPa
Finished length: 1,600 mm
Working pressure: 27.5 MPa
Left fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
Quantity: 1

Same system

Diagram Pipe No. 25

Installation route: 分配阀PB9口~过渡阀块(车架)

Length: 450 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

Diagram Pipe No. 61

Installation route: 分配阀A5口~开关阀A口

Length: 1,080 mm
Specification: DN13;2SN-08;27.5MPa
Left fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

Diagram Pipe No. 154

Installation route: 分配阀T3口~电磁阀T口

Length: 1,600 mm
Specification: DN13;2SN-08;27.5MPa
Left fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

Diagram Pipe No. 65

Installation route: 分配阀P口~铁管(液压泵旁)

Length: 510 mm
Specification: DN19;2SN-12;21.5MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

Diagram Pipe No. 62

Installation route: 分配阀P口~分配阀P2口

Diagram Pipe No. 154

Installation route: 分配阀T3口~电磁阀T口

Length: 1,100 mm
Specification: DN13;1SN-08;16MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
