Individual hose record

DS2093180 Hose Repair Specifications

Excavator · Doosan · DX80R · Control Valve

Finished length450 mm

Locate this hose

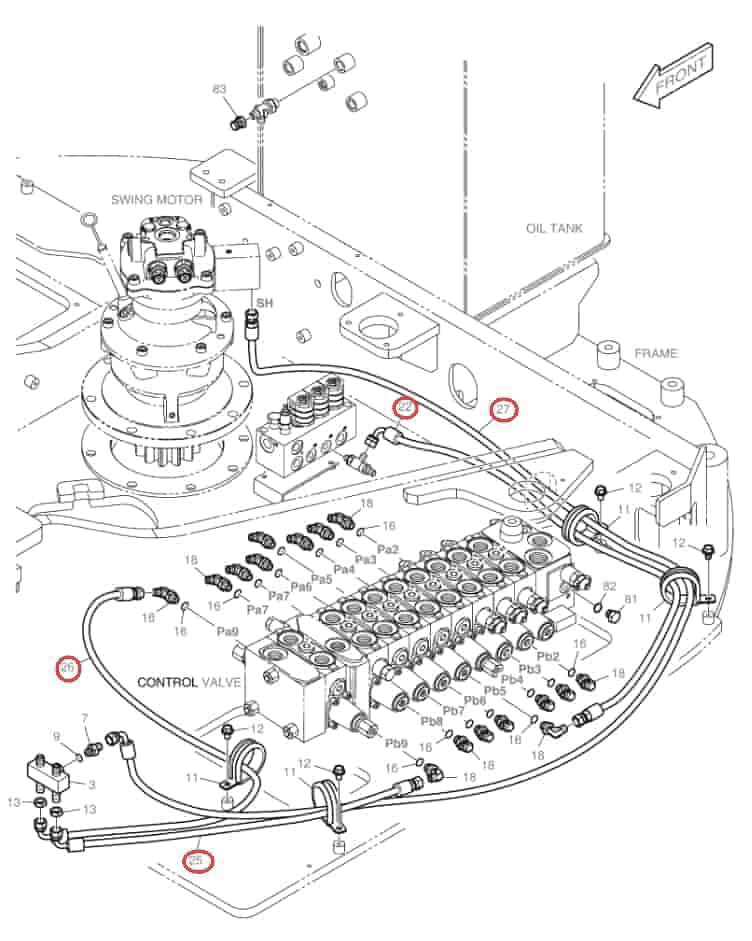

Installation diagram — Pipe No. 25

Locate Pipe No. 25 in the diagram, then confirm part number DS2093180 before removing the hose.

Part number: DS2093180
Diagram pipe number: 25
Installation route: 分配阀PB9口~过渡阀块(车架)
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 450 mm
Working pressure: 22.5 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
Quantity: 1

Same system

Diagram Pipe No. 61

Installation route: 分配阀A5口~开关阀A口

Length: 1,080 mm
Specification: DN13;2SN-08;27.5MPa
Left fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

Diagram Pipe No. 154

Installation route: 分配阀T3口~电磁阀T口

Length: 1,600 mm
Specification: DN13;2SN-08;27.5MPa
Left fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

Diagram Pipe No. 8

Installation route: 分配阀T3口~先导阀T口

Length: 1,600 mm
Specification: DN13;2SN-08;27.5MPa
Left fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

Diagram Pipe No. 65

Installation route: 分配阀P口~铁管(液压泵旁)

Length: 510 mm
Specification: DN19;2SN-12;21.5MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

Diagram Pipe No. 62

Installation route: 分配阀P口~分配阀P2口

Diagram Pipe No. 154

Installation route: 分配阀T3口~电磁阀T口

Length: 1,100 mm
Specification: DN13;1SN-08;16MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
