Individual hose record
4613763 Hose Repair Specifications
Excavator · Hitachi · ZX190W-5N · Solenoid Valve
Finished length450 mm
Locate this hose

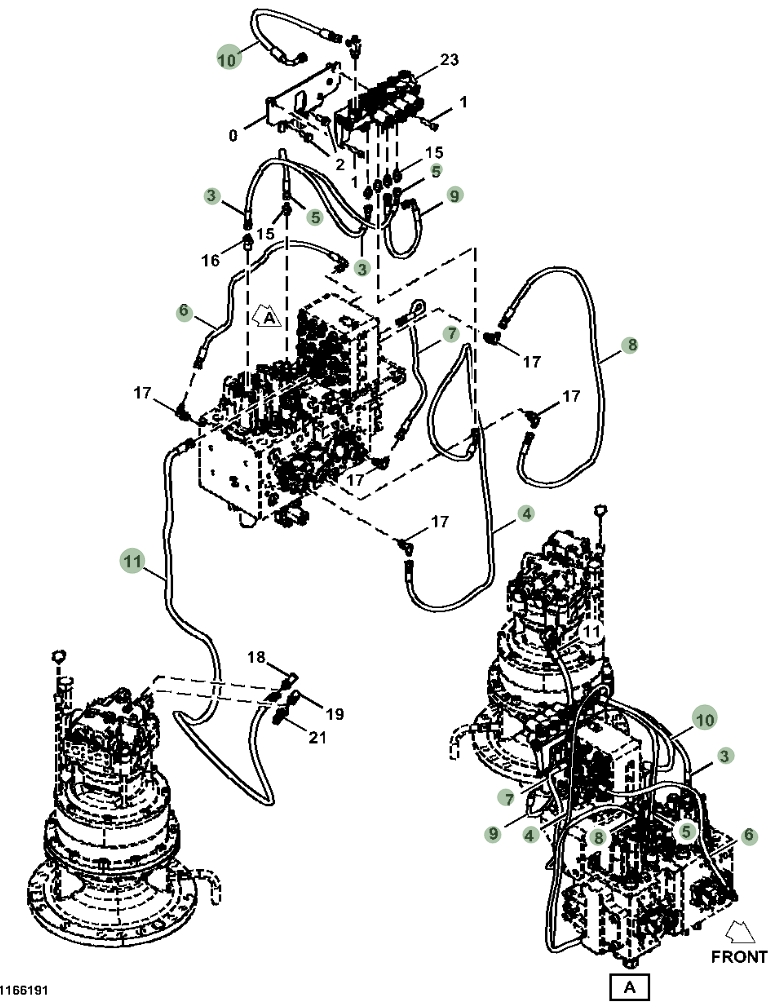

Installation diagram — Pipe No. 10
Locate Pipe No. 10 in the diagram, then confirm part number 4613763 before removing the hose.
Repair specifications
- Part number
- 4613763
- Diagram pipe number
- 10
- Installation route
- 电磁阀~中转接头
- Hose specification
- DN10;1SN-06;7Mpa
- Finished length
- 450 mm
- Working pressure
- 7 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
- Quantity
- 1
