Individual hose record

4489882 Hose Repair Specifications

Excavator · Hitachi · ZX190W-5N · Solenoid Valve

Finished length1,300 mm

Locate this hose

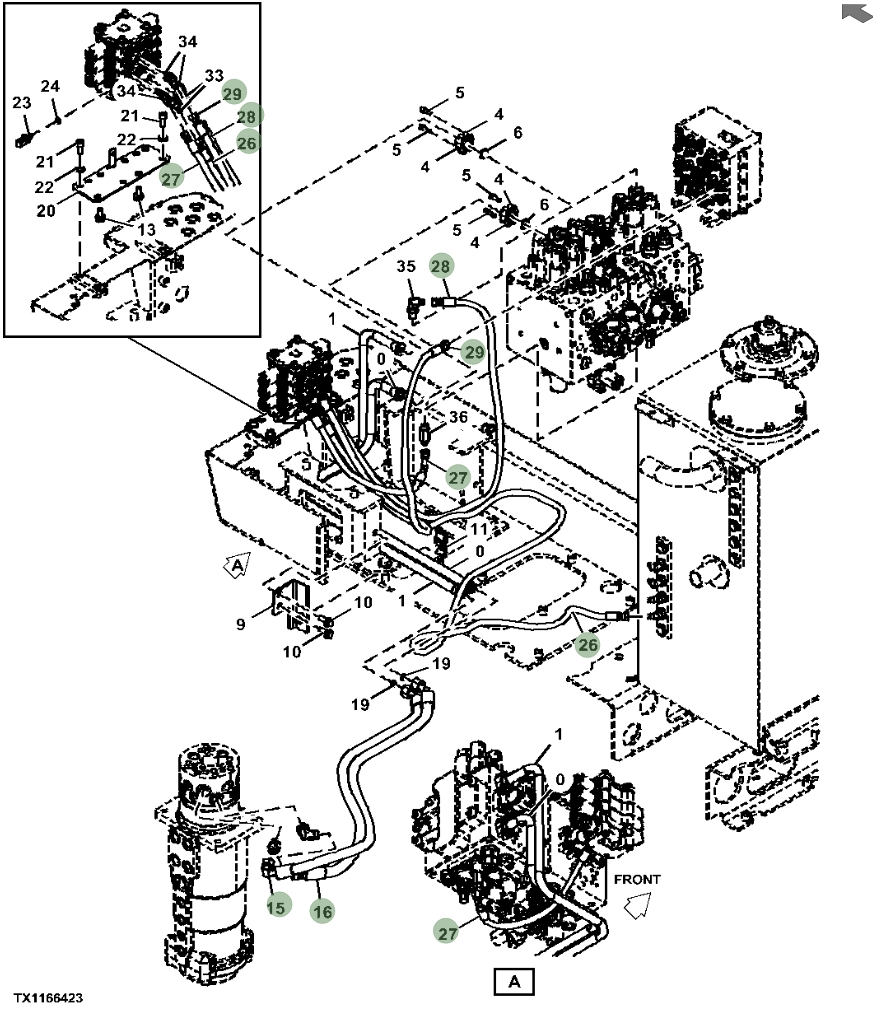

Installation diagram — Pipe No. 29

Locate Pipe No. 29 in the diagram, then confirm part number 4489882 before removing the hose.

Hitachi ZX190W-5N installation diagram showing hydraulic hose 4489882 at Pipe No. 29 — Hitachi ZX190W-5NPart 4489882 · Pipe No. 29Open full-size diagram

Repair specifications

Part number: 4489882
Diagram pipe number: 29
Installation route: 电磁阀(隔板)~中转接头
Hose specification: DN10;1SN-6;7Mpa
Finished length: 1,300 mm
Working pressure: 7 MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 9

4620080

Installation route: 电磁阀~中转接头

Length: 450 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 90°美制内螺纹74°内锥

View full repair specifications

Diagram Pipe No. 10

4613763

Installation route: 电磁阀~中转接头

Length: 450 mm
Specification: DN10;1SN-06;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥

View full repair specifications
