Individual hose record
4713477 Hose Repair Specifications
Excavator · Hitachi · ZX470LC-5B · Hydraulic Tank
Finished length450 mm
Locate this hose

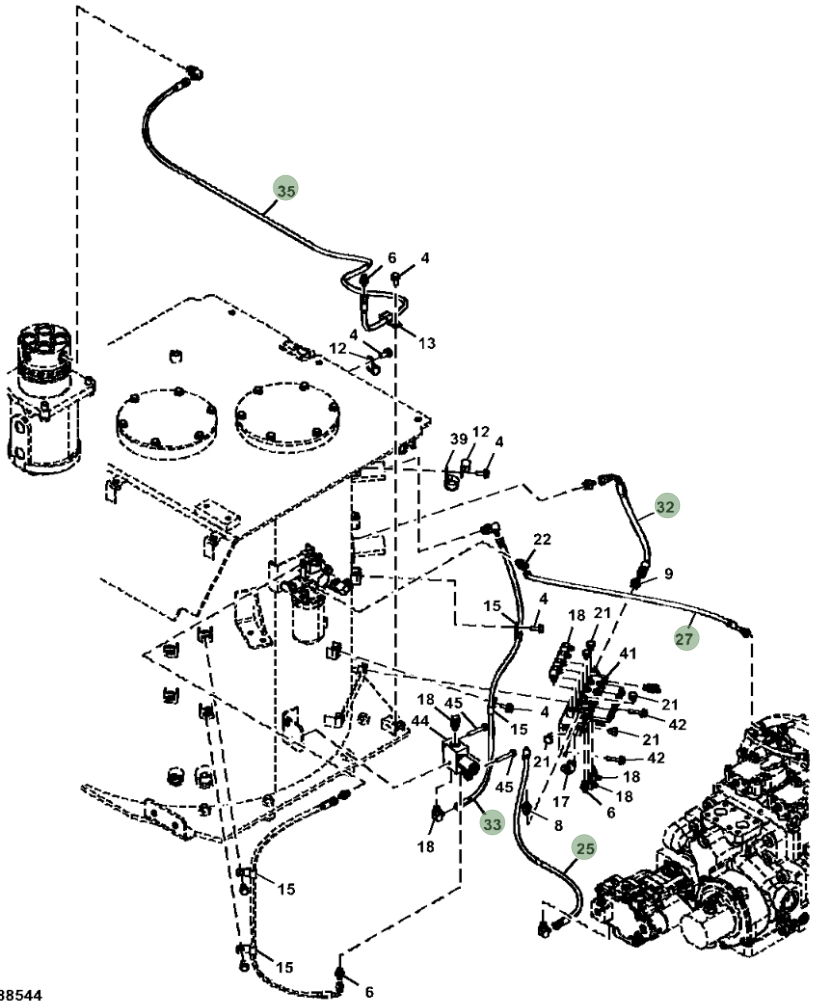

Installation diagram — Pipe No. 32
Locate Pipe No. 32 in the diagram, then confirm part number 4713477 before removing the hose.
Repair specifications
- Part number
- 4713477
- Diagram pipe number
- 32
- Installation route
- 液压油箱~电磁阀(液压油箱)
- Hose specification
- DN10;1SN-06;18MPa
- Finished length
- 450 mm
- Working pressure
- 18 MPa
- Left fitting
- 美制内螺纹74°内锥
- Right fitting
- 90°美制内螺纹74°内锥
- Quantity
- 1
