Individual hose record
4299672 Hose Repair Specifications
Excavator · Hitachi · EX270LC-5 · Attachments – Lock Valve
Finished length670 mm
Locate this hose

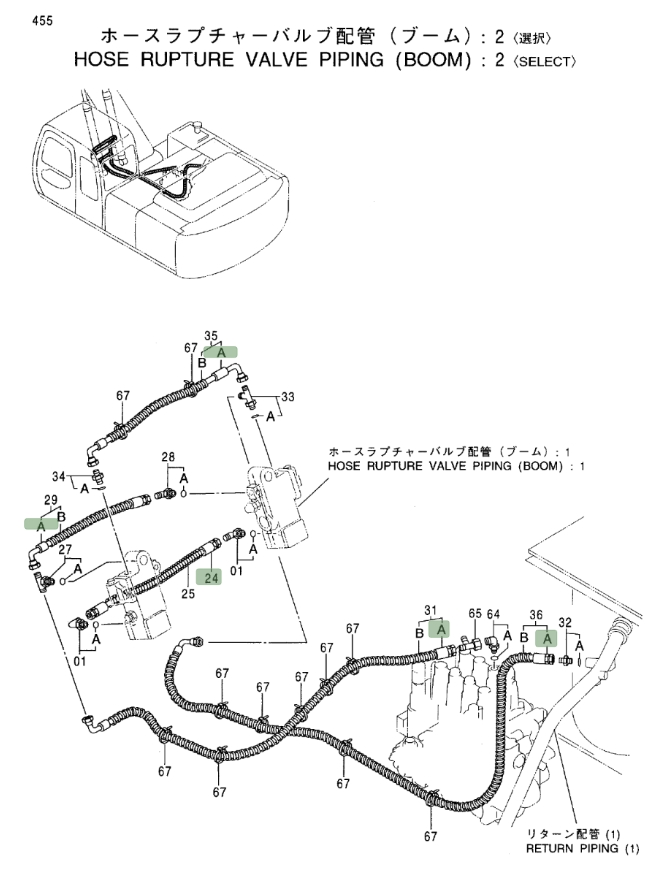

Installation diagram — Pipe No. 24
Locate Pipe No. 24 in the diagram, then confirm part number 4299672 before removing the hose.
Repair specifications
- Part number
- 4299672
- Diagram pipe number
- 24
- Installation route
- Left boom-cylinder lock valve → right boom-cylinder lock valveOriginal Chinese: 左大臂油缸锁止阀~右大臂油缸锁止阀
- Hose specification
- DN6;2SN-4;68.5MPa
- Finished length
- 670 mm
- Working pressure
- 68.5 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
- Quantity
- 1
