Individual hose record
4693123 Hose Repair Specifications
Excavator · Hitachi · ZX135US-6N · Control Lever
Finished length1,550 mm
Locate this hose

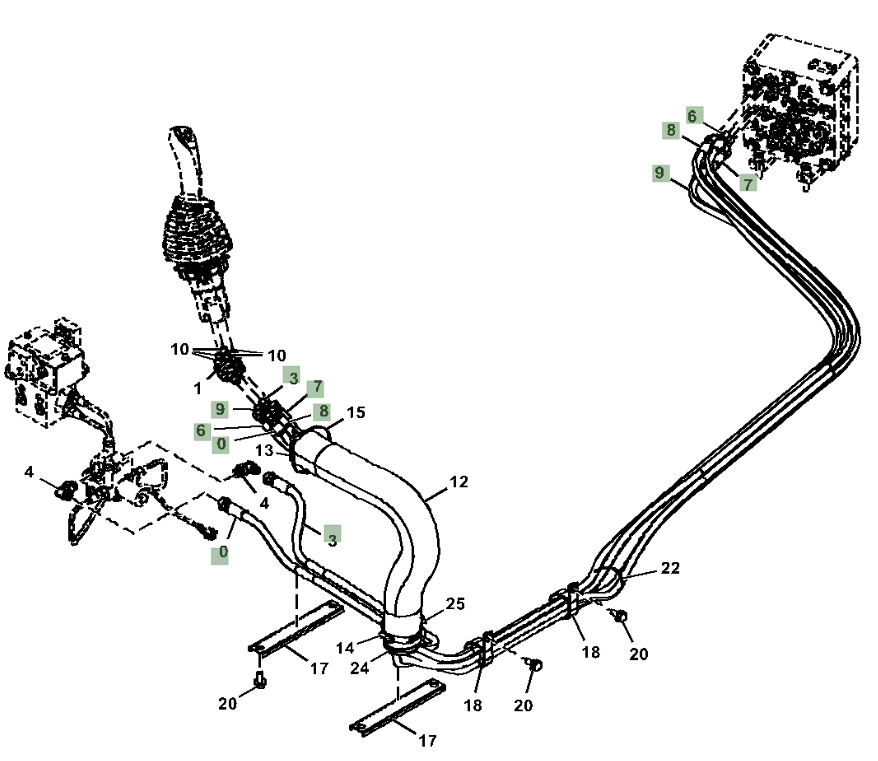

Installation diagram — Pipe No. 0
Locate Pipe No. 0 in the diagram, then confirm part number 4693123 before removing the hose.
Repair specifications
- Part number
- 4693123
- Diagram pipe number
- 0
- Installation route
- 左手柄~进回油阀
- Hose specification
- DN10;1SN-6;7Mpa
- Finished length
- 1,550 mm
- Working pressure
- 7 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
- Quantity
- 1
