Individual hose record
4366786 Hose Repair Specifications
Excavator · Hitachi · EX400LC-3C · Pedal
Finished length2,050 mm
Locate this hose

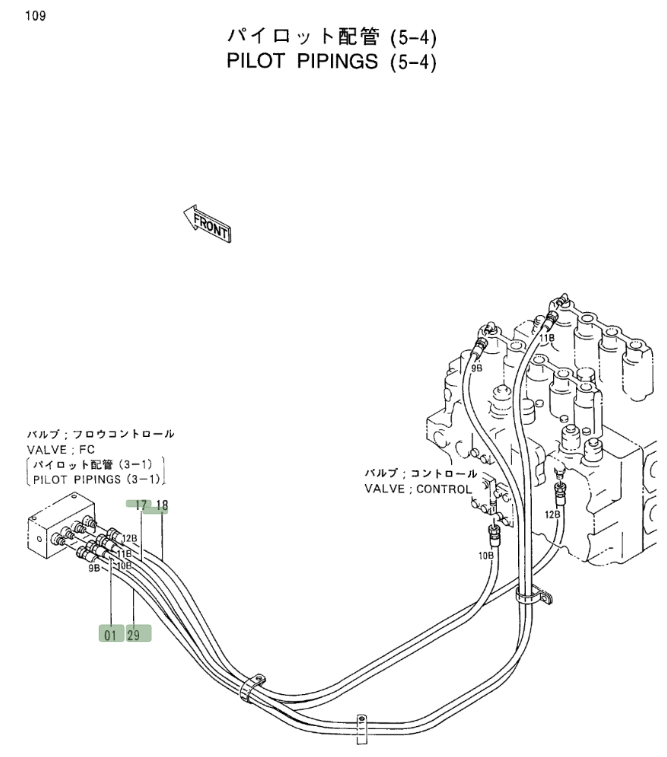

Installation diagram — Pipe No. 18
Locate Pipe No. 18 in the diagram, then confirm part number 4366786 before removing the hose.
Repair specifications
- Part number
- 4366786
- Diagram pipe number
- 18
- Installation route
- 中转接头(行走踏板)~分配阀下右
- Hose specification
- DN10;1SN-6;7Mpa
- Finished length
- 2,050 mm
- Working pressure
- 7 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
- Quantity
- 1
