Individual hose record

9152701 Hose Repair Specifications

Excavator · Hitachi · EX200LC-5 · Hydraulic Pump

Finished length680 mm

Locate this hose

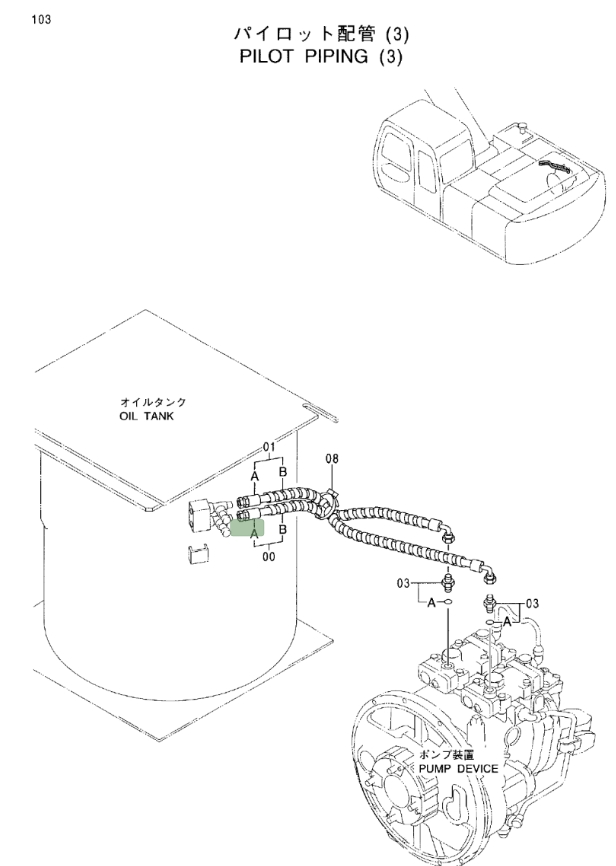

Installation diagram — Pipe No. 1

Locate Pipe No. 1 in the diagram, then confirm part number 9152701 before removing the hose.

Hitachi EX200LC-5 installation diagram showing hydraulic hose 9152701 at Pipe No. 1 — Hitachi EX200LC-5Part 9152701 · Pipe No. 1Open full-size diagram

Repair specifications

Part number: 9152701
Diagram pipe number: 1
Installation route: 液压泵~液压油箱
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 680 mm
Working pressure: 22.5 MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 90°美制内螺纹74°内锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 15

9152720

Installation route: 液压泵~电磁阀

Length: 2,400 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 90°美制内螺纹74°内锥
