Individual hose record

DS20551266 Hose Repair Specifications

Excavator · Doosan · DX85R-3 · Boom Assembly

Finished length3,100 mm

Locate this hose

Installation diagram — Pipe No. 45

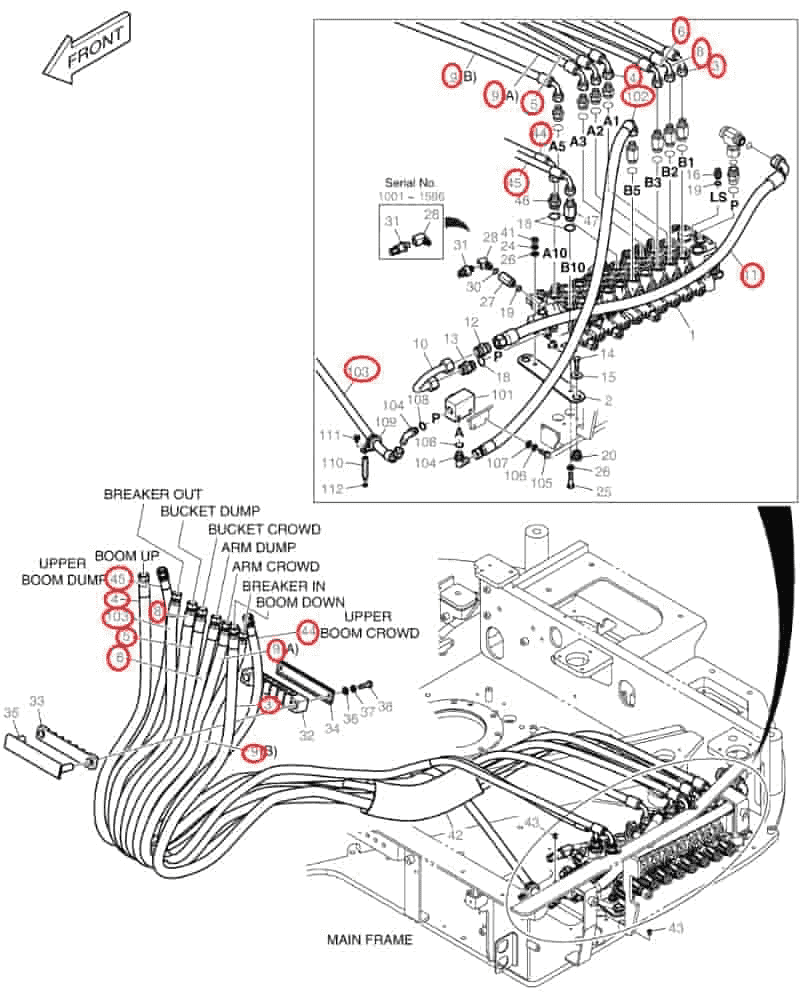

Locate Pipe No. 45 in the diagram, then confirm part number DS20551266 before removing the hose.

Doosan DX85R-3 installation diagram showing hydraulic hose DS20551266 at Pipe No. 45 — **Doosan DX85R-3**Part DS20551266 · Pipe No. 45Open full-size diagram

Repair specifications

Part number: DS20551266
Diagram pipe number: 45
Installation route: 大臂(分节油缸)~分配阀B10口
Hose specification: DN13;4SP-08;41.5MPa
Finished length: 3,100 mm
Working pressure: 41.5 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
Quantity: 1
