Individual hose record

4448556 Hose Repair Specifications

Excavator · Hitachi · ZX330LC · Attachments – Breaker

Finished length1,050 mm

Locate this hose

Installation diagram — Pipe No. 26A

Locate Pipe No. 26A in the diagram, then confirm part number 4448556 before removing the hose.

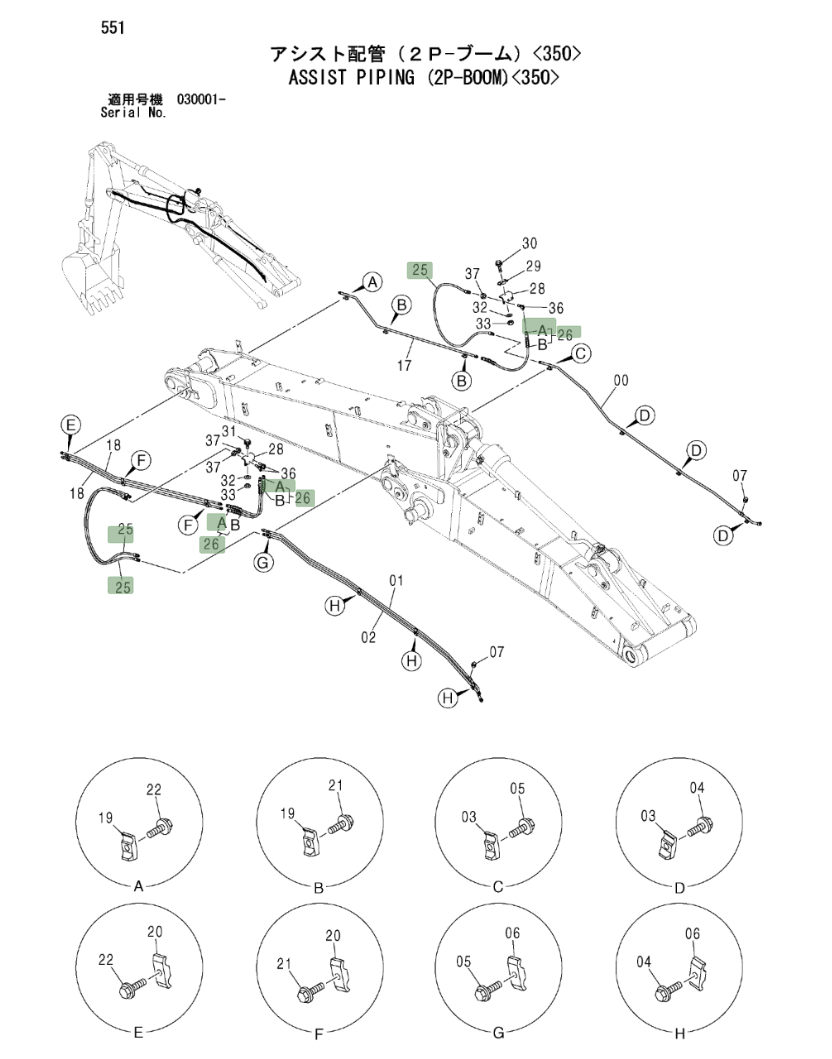

Hitachi ZX330LC installation diagram showing hydraulic hose 4448556 at Pipe No. 26A — **Hitachi ZX330LC**Part 4448556 · Pipe No. 26AOpen full-size diagram

Repair specifications

Part number: 4448556
Diagram pipe number: 26A
Installation route: 大臂(破碎器)~接线板(破碎器)
Hose specification: DN10;2SN-6;34.5MPa
Finished length: 1,050 mm
Working pressure: 34.5 MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥
Quantity: 1
