Individual hose record

DS2093080 Hose Repair Specifications

Excavator · Doosan · DX160LC · Control Valve

Finished length810 mm

Locate this hose

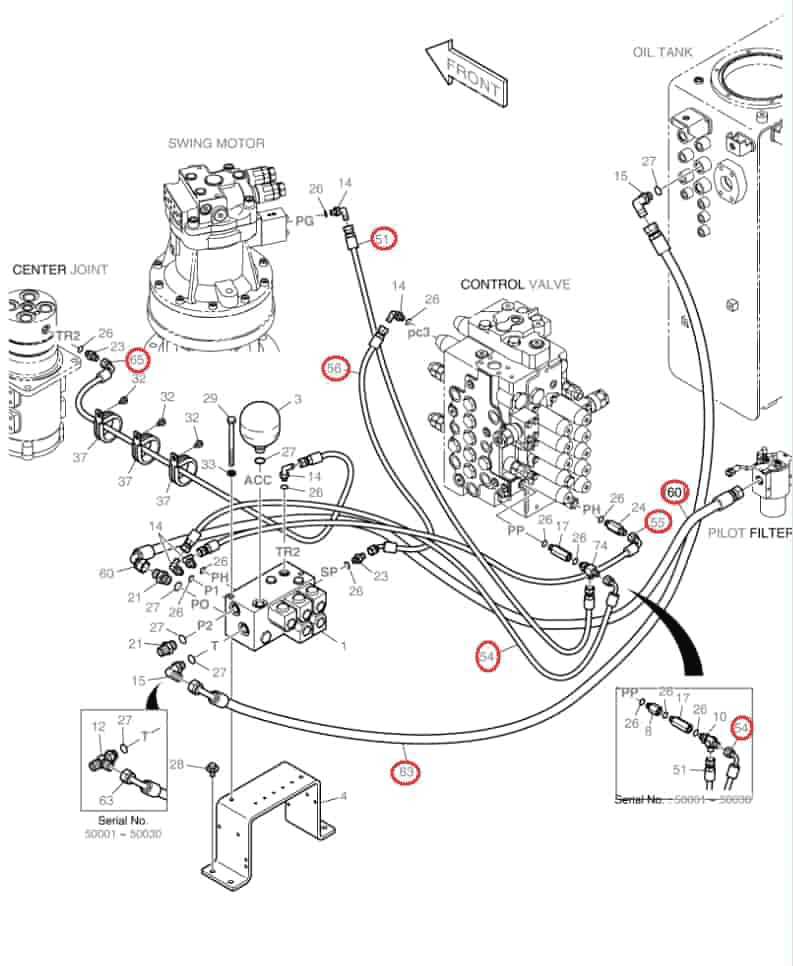

Installation diagram — Pipe No. 54

Locate Pipe No. 54 in the diagram, then confirm part number DS2093080 before removing the hose.

Part number: DS2093080
Diagram pipe number: 54
Installation route: 分配阀PP口~电磁阀P1口
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 810 mm
Working pressure: 22.5 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
Quantity: 1

Same system

Diagram Pipe No. 62

Installation route: 分配阀DR口~液压油箱

Length: 430 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

Diagram Pipe No. 50

Installation route: 分配阀PA口~回转马达SH口

Length: 750 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
