Individual hose record
KSJ2868 Hose Repair Specifications
Excavator · Case · CX350 · Hydraulic Pump
Finished length750 mm
Locate this hose

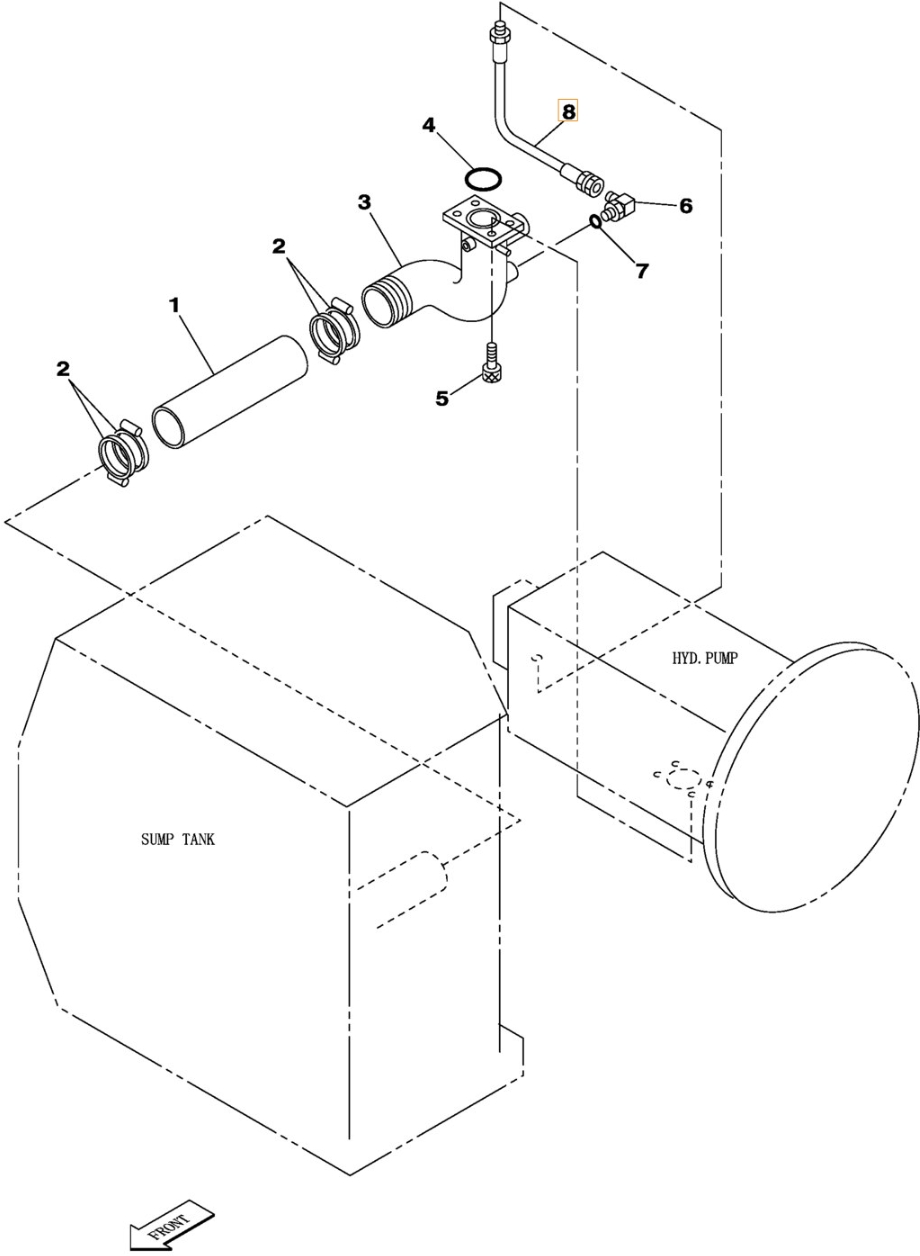

Installation diagram — Pipe No. 8
Locate Pipe No. 8 in the diagram, then confirm part number KSJ2868 before removing the hose.
Repair specifications
- Part number
- KSJ2868
- Diagram pipe number
- 8
- Installation route
- 先导泵~吸油铁管
- Hose specification
- DN19;2SN-12;21.5MPa
- Finished length
- 750 mm
- Working pressure
- 21.5 MPa
- Left fitting
- 英制外螺纹平面密封
- Right fitting
- British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
- Quantity
- 1
