Individual hose record
730501003474 Hose Repair Specifications
Excavator · Sunward · SWE135E-3H · Control Lever
Finished length1,360 mm
Locate this hose

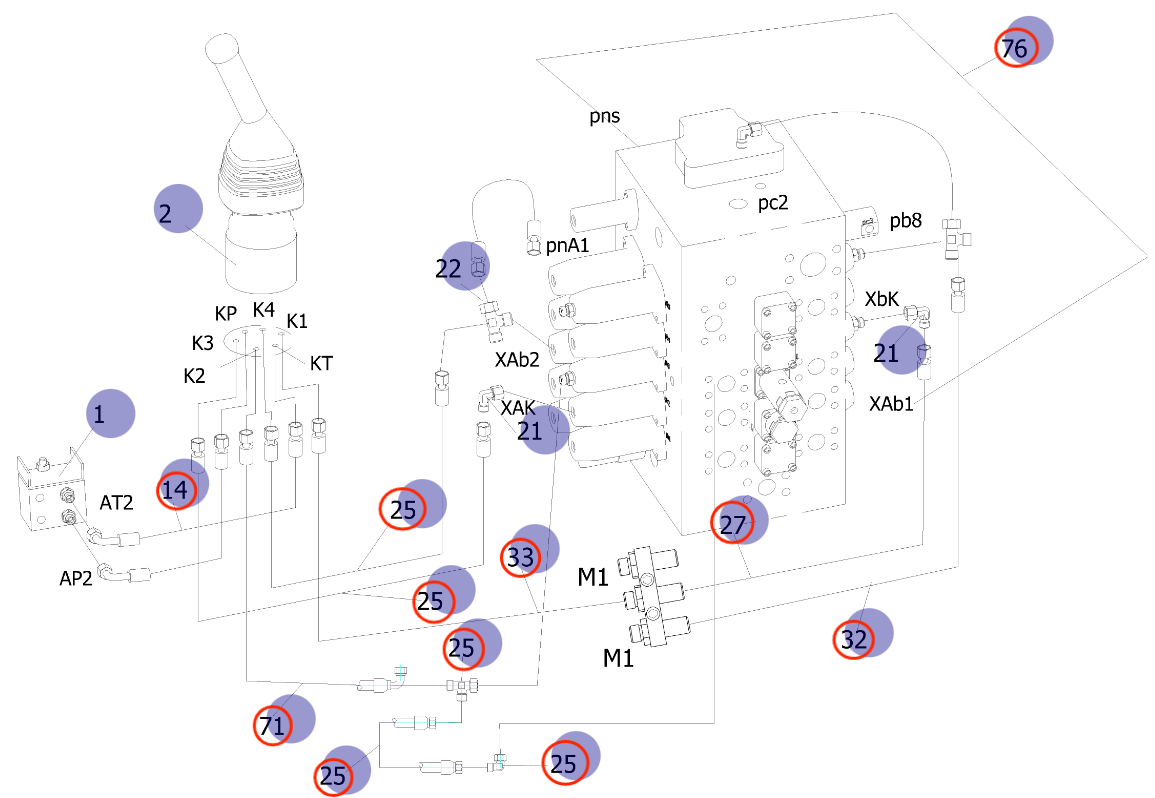

Installation diagram — Pipe No. 14
Locate Pipe No. 14 in the diagram, then confirm part number 730501003474 before removing the hose.
Repair specifications
- Part number
- 730501003474
- Diagram pipe number
- 14
- Installation route
- 手柄KP~进回油阀AP2
- Hose specification
- DN6;1SN-04;22.5MPa
- Finished length
- 1,360 mm
- Working pressure
- 22.5 MPa
- Left fitting
- 公制内螺纹24°锥带O形圈-轻型
- Right fitting
- 90°公制内螺纹24°锥带O形圈-轻型
- Quantity
- 1
