- Length
- 500 mm
- Specification
- DN6;1SN-4;7Mpa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
Individual hose record
4328612 Hose Repair Specifications
Excavator · Hitachi · EX300LC-3 · Solenoid Valve
Finished length250 mm
Locate this hose

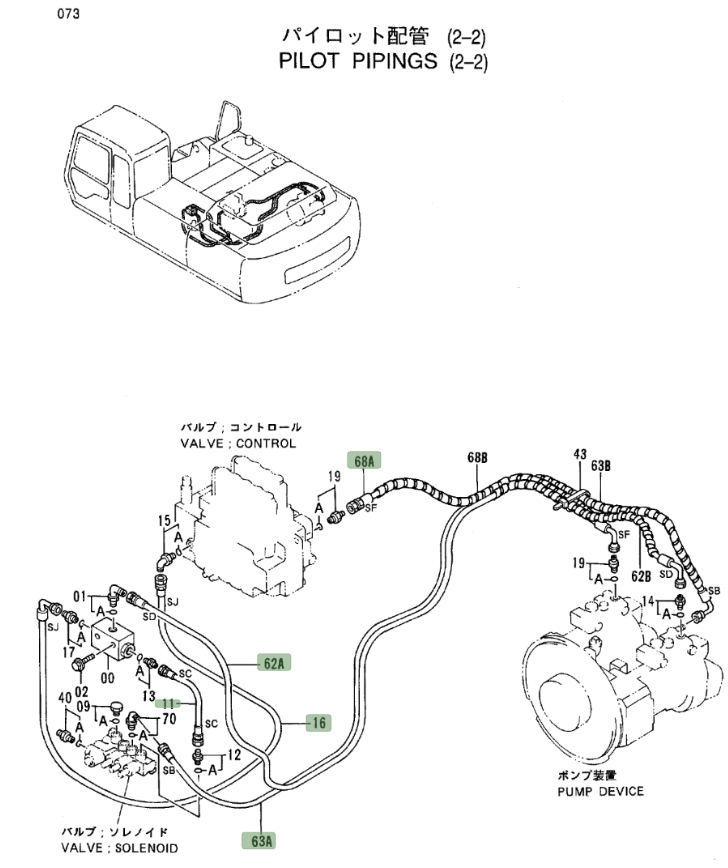

Installation diagram — Pipe No. 11
Locate Pipe No. 11 in the diagram, then confirm part number 4328612 before removing the hose.
Repair specifications
- Part number
- 4328612
- Diagram pipe number
- 11
- Installation route
- 电磁阀~过渡阀块(分配阀)
- Hose specification
- DN6;1SN-4;7Mpa
- Finished length
- 250 mm
- Working pressure
- 7 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
- Quantity
- 1
