Individual hose record

4713999 Hose Repair Specifications

Excavator · Hitachi · ZX670LC-6 · Pedal

Finished length4,900 mm

Locate this hose

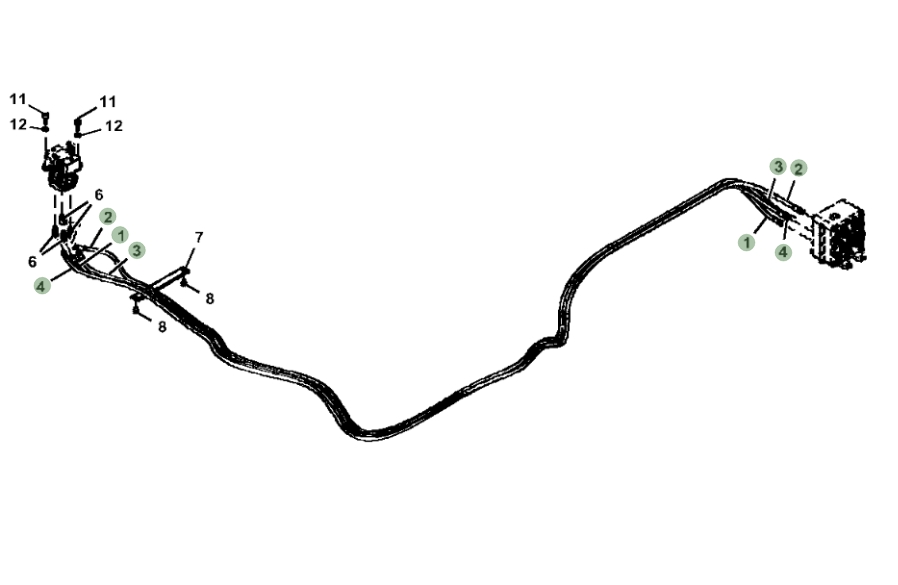

Installation diagram — Pipe No. 2

Locate Pipe No. 2 in the diagram, then confirm part number 4713999 before removing the hose.

Hitachi ZX670LC-6 installation diagram showing hydraulic hose 4713999 at Pipe No. 2 — Hitachi ZX670LC-6Part 4713999 · Pipe No. 2Open full-size diagram

Repair specifications

Part number: 4713999
Diagram pipe number: 2
Installation route: 行走踏板~中转接头
Hose specification: DN10;1SN-6;7Mpa
Finished length: 4,900 mm
Working pressure: 7 MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 8

4648087

Installation route: 行走踏板~进回油阀

Length: 430 mm
Specification: DN10;1SN-06;18MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 90°美制内螺纹74°内锥

View full repair specifications

Diagram Pipe No. 9

4709482

Installation route: 行走踏板~进回油阀

Length: 600 mm
Specification: DN10;1SN-06;18MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 美制内螺纹74°内锥

View full repair specifications

Diagram Pipe No. 3

4714000

Installation route: 行走踏板~中转接头

Length: 5,000 mm
Specification: DN10;1SN-6;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 1

4713998

Installation route: 行走踏板~中转接头

Length: 4,900 mm
Specification: DN10;1SN-6;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥

View full repair specifications
