Individual hose record

DS2093114 Hose Repair Specifications

Excavator · Doosan · B55W-2 · Control Lever

Finished length2,100 mm

Locate this hose

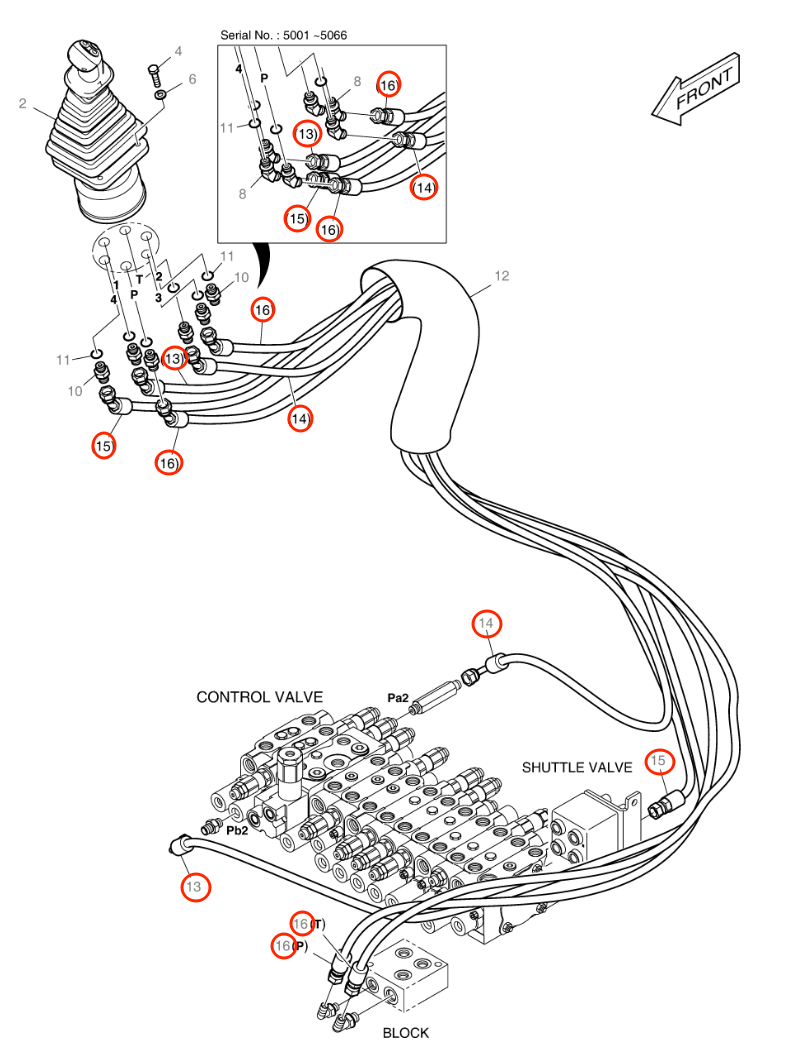

Installation diagram — Pipe No. 14

Locate Pipe No. 14 in the diagram, then confirm part number DS2093114 before removing the hose.

Part number: DS2093114
Diagram pipe number: 14
Installation route: 右手柄3口~分配阀PA2口
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 2,100 mm
Working pressure: 22.5 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
Quantity: 1

Same system

Diagram Pipe No. 13

Installation route: 右手柄1口~分配阀PB2口

Length: 2,650 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

Diagram Pipe No. 6

Installation route: 右手柄2口~分配阀PA7口

Length: 1,730 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 45° elbow, British female thread, 60° external cone seatOriginal Chinese: 45°英制内螺纹60°外锥
