- Length
- 2,010 mm
- Specification
- DN6;1SN-4;7Mpa
- Left fitting
- 45°美制内螺纹37°内锥
- Right fitting
- 90°美制内螺纹37°内锥
Individual hose record
4709637 Hose Repair Specifications
Excavator · Hitachi · ZX50U-3 · Control Valve
Finished length980 mm
Locate this hose

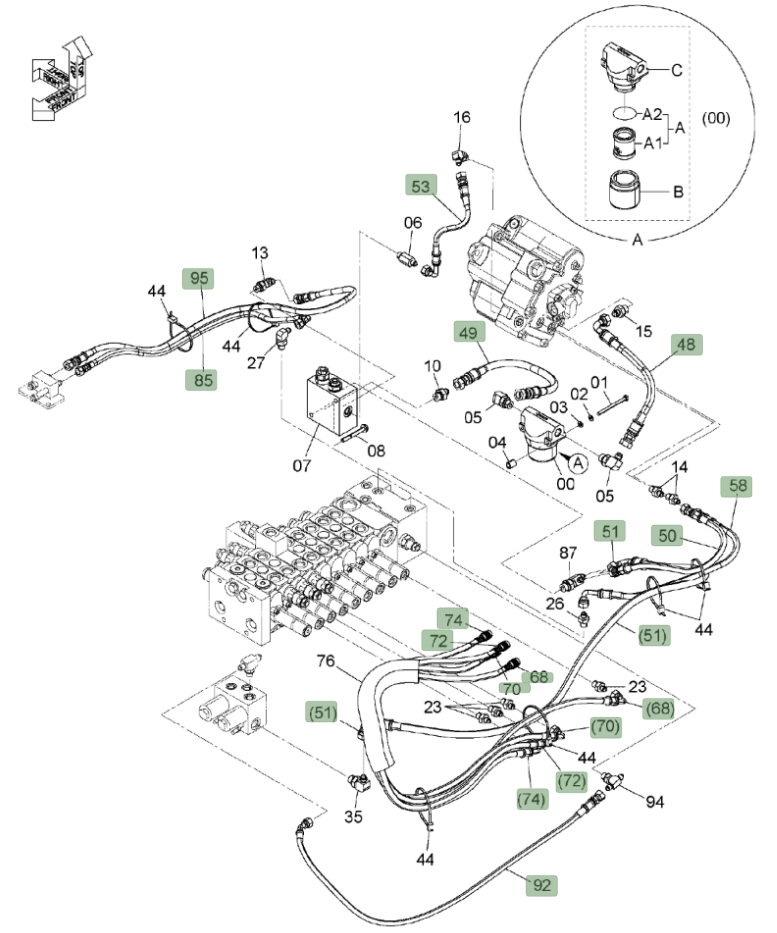

Installation diagram — Pipe No. 92
Locate Pipe No. 92 in the diagram, then confirm part number 4709637 before removing the hose.
Repair specifications
- Part number
- 4709637
- Diagram pipe number
- 92
- Installation route
- 分配阀左后~电磁阀
- Hose specification
- DN6;1SN-4;7Mpa
- Finished length
- 980 mm
- Working pressure
- 7 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 45°美制内螺纹37°内锥
- Quantity
- 1
