Individual hose record

4415081 Hose Repair Specifications

Excavator · Hitachi · ZX75US-3 · Swivel Joint

Finished length1,400 mm

Locate this hose

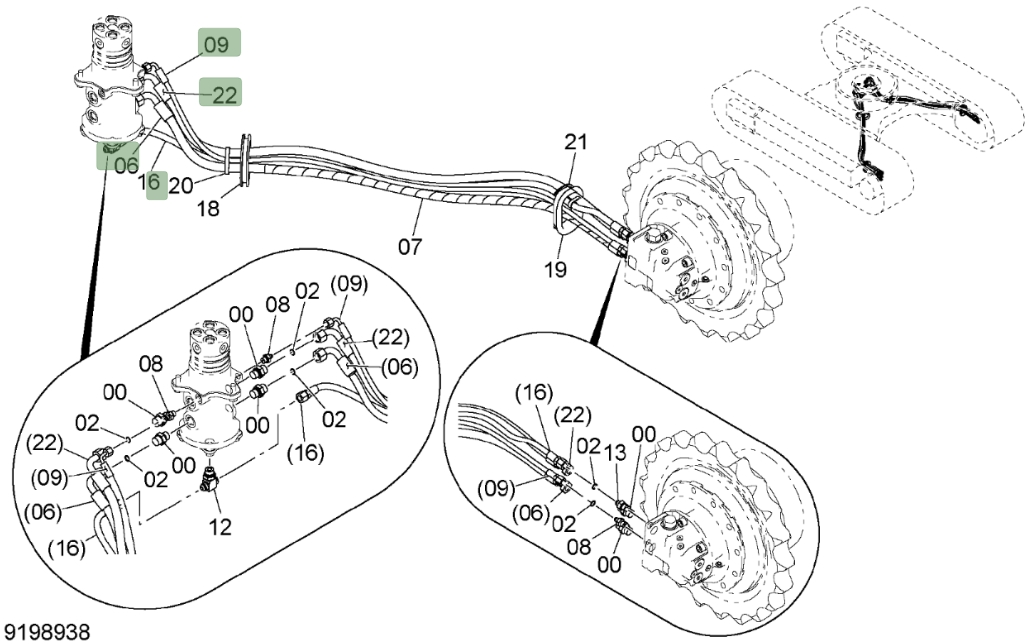

Installation diagram — Pipe No. 16

Locate Pipe No. 16 in the diagram, then confirm part number 4415081 before removing the hose.

Same system

Diagram Pipe No. 22

Installation route: Swivel joint → travel motorOriginal Chinese: 回转接头~行走马达

Length: 1,350 mm
Specification: DN12;4SP-8;28Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封

Diagram Pipe No. 6

Installation route: Swivel joint → travel motorOriginal Chinese: 回转接头~行走马达

Length: 1,380 mm
Specification: DN13;4SP-08;41.5MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封

Diagram Pipe No. 9

Installation route: Swivel joint → travel motorOriginal Chinese: 回转接头~行走马达
