Individual hose record
4210340 Hose Repair Specifications
Excavator · Hitachi · EX400LC · Attachments
Finished length1,350 mm
Locate this hose

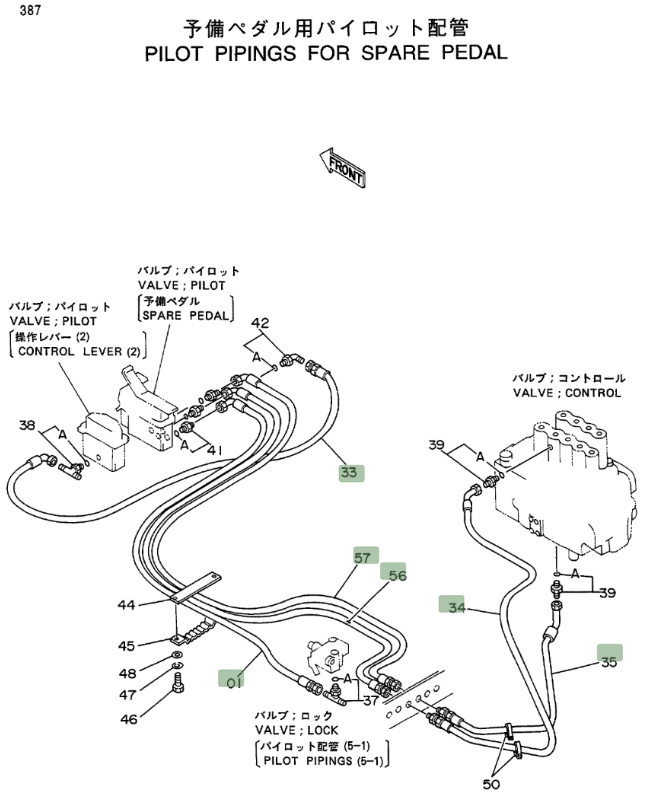

Installation diagram — Pipe No. 1
Locate Pipe No. 1 in the diagram, then confirm part number 4210340 before removing the hose.
Repair specifications
- Part number
- 4210340
- Diagram pipe number
- 1
- Installation route
- 备用踏板~进回油阀
- Hose specification
- DN10;1层纤维-6;14MPa
- Finished length
- 1,350 mm
- Working pressure
- 14 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 90°美制内螺纹37°内锥
- Quantity
- 1
