Individual hose record
4426470 Hose Repair Specifications
Excavator · Hitachi · EX50UNA · Control Lever
Finished length1,780 mm
Locate this hose

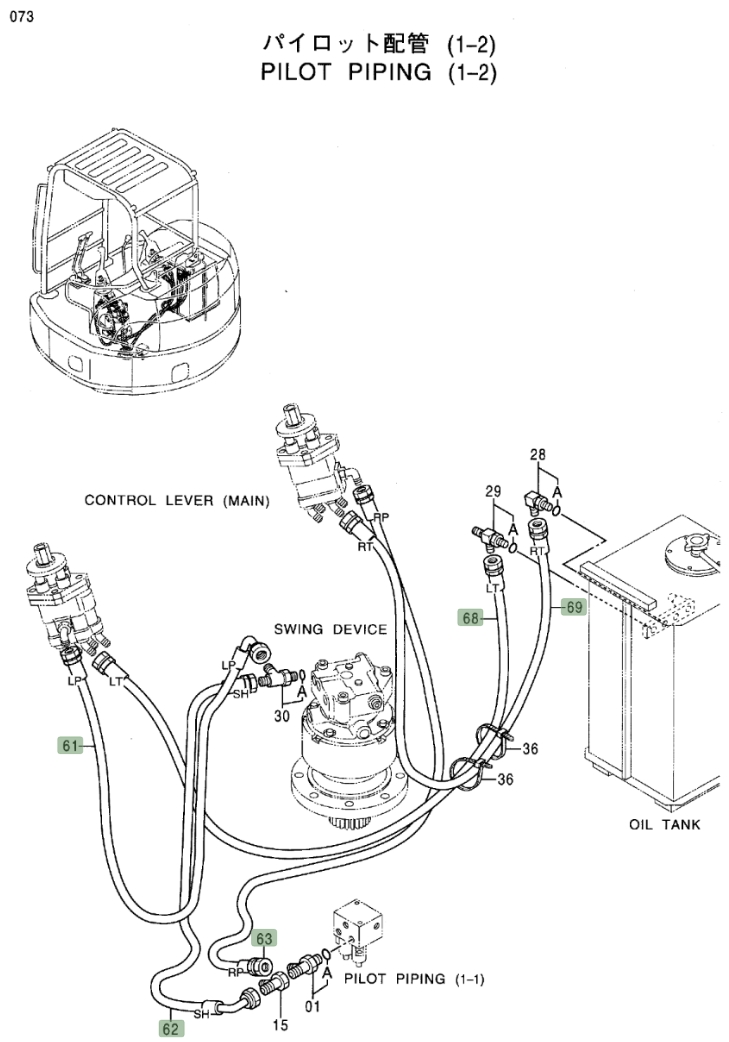

Installation diagram — Pipe No. 63
Locate Pipe No. 63 in the diagram, then confirm part number 4426470 before removing the hose.
Repair specifications
- Part number
- 4426470
- Diagram pipe number
- 63
- Installation route
- 右手柄~电磁阀
- Hose specification
- DN6;1SN-4;7Mpa
- Finished length
- 1,780 mm
- Working pressure
- 7 MPa
- Left fitting
- 英制内螺纹30°外锥
- Right fitting
- 英制内螺纹30°外锥
- Quantity
- 1
