Individual hose record

KHJ13650 Hose Repair Specifications

Excavator · Case · CX500D LC ME · Pedal

Finished length3,200 mm

Locate this hose

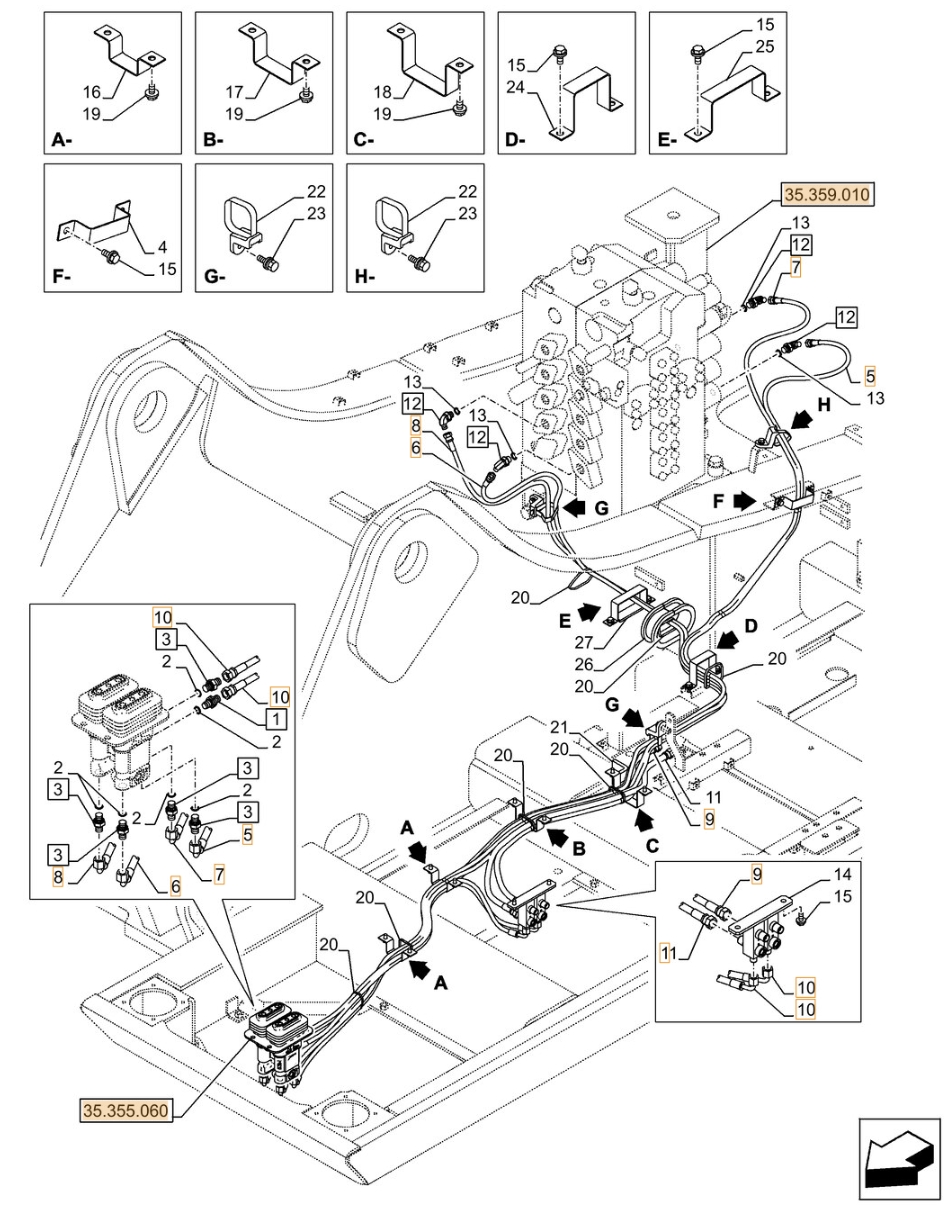

Installation diagram — Pipe No. 6

Locate Pipe No. 6 in the diagram, then confirm part number KHJ13650 before removing the hose.

Part number: KHJ13650
Diagram pipe number: 6
Installation route: 行走踏板~分配阀前左
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 3,200 mm
Working pressure: 22.5 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
Quantity: 1

Same system

Diagram Pipe No. 7

Installation route: 行走踏板~分配阀后右

Length: 3,650 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

Diagram Pipe No. 10

Installation route: 行走踏板~进回油阀

Length: 1,150 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

Diagram Pipe No. 5

Installation route: 行走踏板~分配阀后左

Length: 3,500 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
