- Length
- 3,400 mm
- Specification
- DN10;1SN-06;18MPa
- Left fitting
- 美制内螺纹74°内锥
- Right fitting
- 美制内螺纹74°内锥
Individual hose record
4639629 Hose Repair Specifications
Excavator · Hitachi · ZX210LC-5A · Pedal
Finished length3,450 mm
Locate this hose

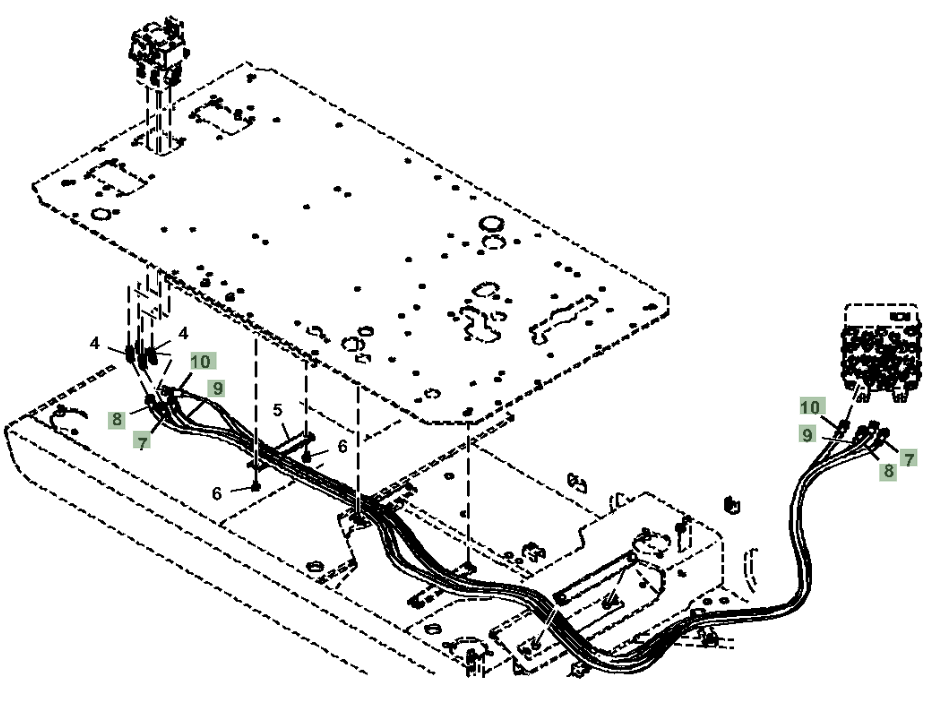

Installation diagram — Pipe No. 8
Locate Pipe No. 8 in the diagram, then confirm part number 4639629 before removing the hose.
Repair specifications
- Part number
- 4639629
- Diagram pipe number
- 8
- Installation route
- 行走踏板~中转接头
- Hose specification
- DN10;1SN-06;18MPa
- Finished length
- 3,450 mm
- Working pressure
- 18 MPa
- Left fitting
- 美制内螺纹74°内锥
- Right fitting
- 美制内螺纹74°内锥
- Quantity
- 1
