Individual hose record

4613763 Hose Repair Specifications

Excavator · Hitachi · ZX260F-FE-6N · Attachments

Finished length450 mm

Locate this hose

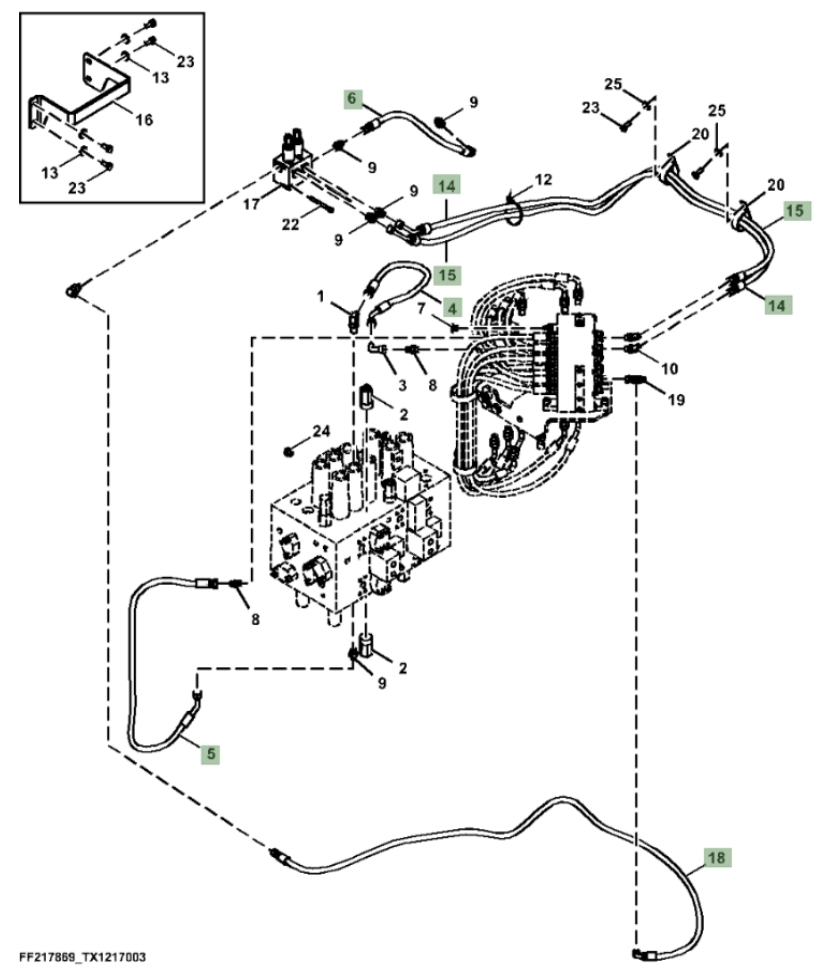

Installation diagram — Pipe No. 6

Locate Pipe No. 6 in the diagram, then confirm part number 4613763 before removing the hose.

Hitachi ZX260F-FE-6N installation diagram showing hydraulic hose 4613763 at Pipe No. 6 — Hitachi ZX260F-FE-6NPart 4613763 · Pipe No. 6Open full-size diagram

Repair specifications

Part number: 4613763
Diagram pipe number: 6
Installation route: 电磁阀(铺路机)~
Hose specification: DN10;1SN-06;7Mpa
Finished length: 450 mm
Working pressure: 7 MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 5

4453063

Installation route: 中转接头~分配阀上

Length: 630 mm
Specification: DN10;1SN-6;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 45°美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 6

9304230

Installation route: 电磁阀(铺路机)~

Length: 450 mm
Specification: DN10;1SN-06;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥

View full repair specifications
