Individual hose record
159235A1 Hose Repair Specifications
Excavator · Case · CX240 · Solenoid Valve
Finished length850 mm
Locate this hose

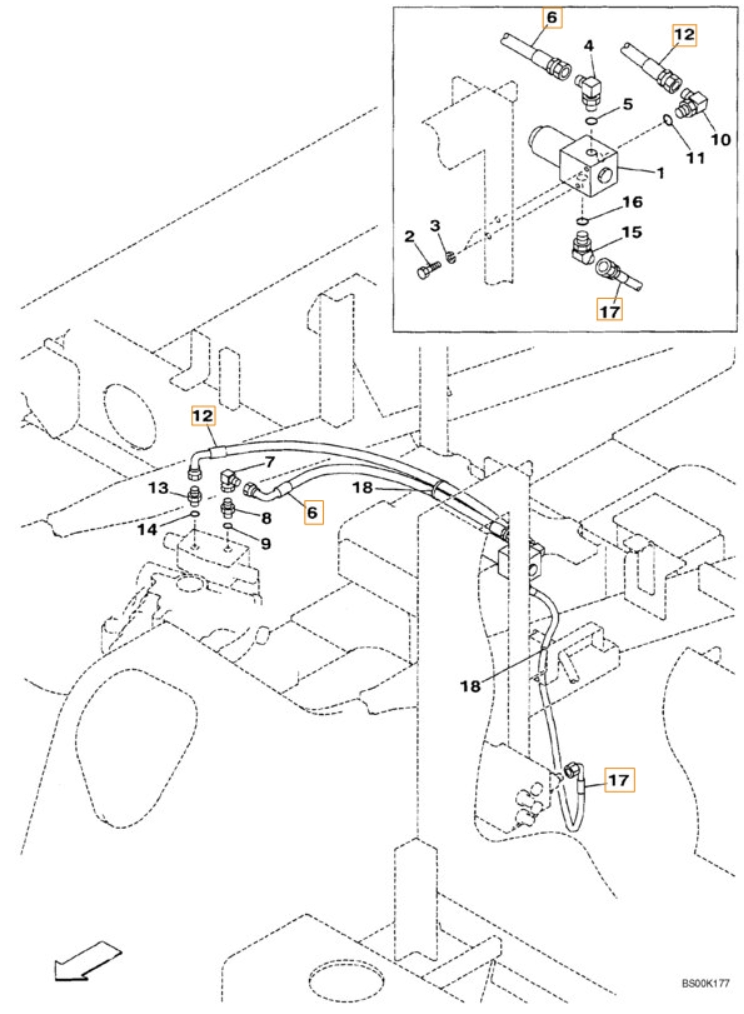

Installation diagram — Pipe No. 17
Locate Pipe No. 17 in the diagram, then confirm part number 159235A1 before removing the hose.
Repair specifications
- Part number
- 159235A1
- Diagram pipe number
- 17
- Installation route
- 电磁阀(回转马达)~缓冲阀(手柄)
- Hose specification
- DN6;1SN-04;22.5MPa
- Finished length
- 850 mm
- Working pressure
- 22.5 MPa
- Left fitting
- British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
- Right fitting
- 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
- Quantity
- 1
