Individual hose record

4665074 Hose Repair Specifications

Excavator · Hitachi · ZX190W-3 · Boom Assembly

Finished length1,200 mm

Locate this hose

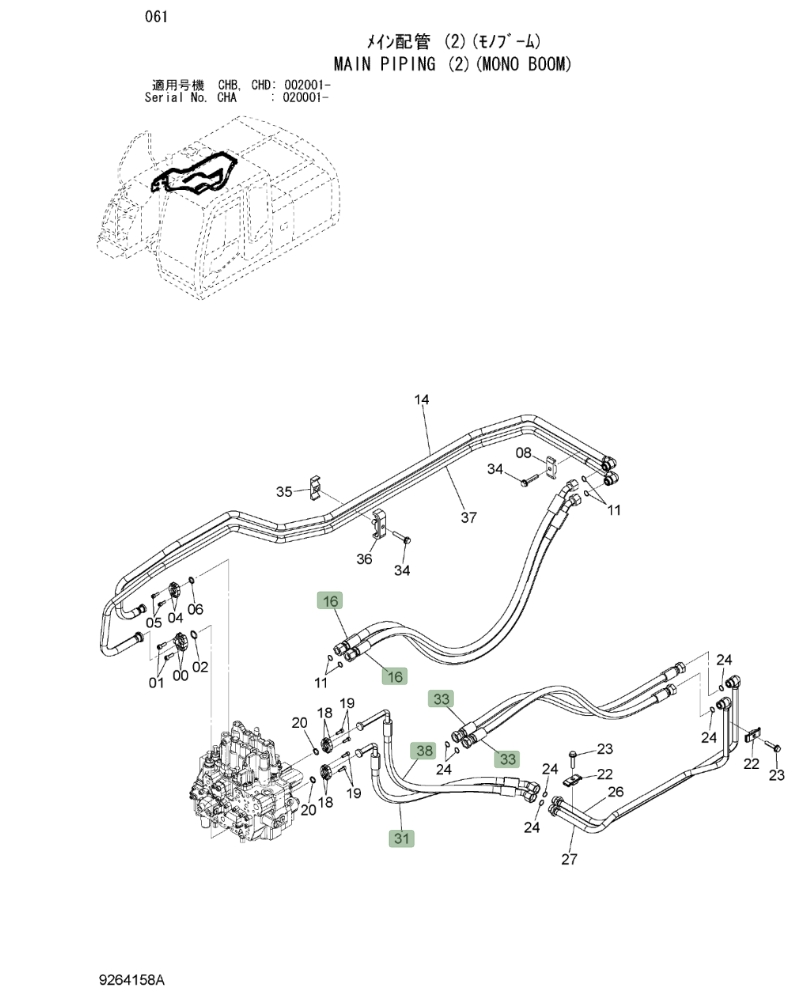

Installation diagram — Pipe No. 33

Locate Pipe No. 33 in the diagram, then confirm part number 4665074 before removing the hose.

Part number: 4665074
Diagram pipe number: 33
Installation route: 大臂左1/左2
Hose specification: DN16;4SP-10;34.5Mpa
Finished length: 1,200 mm
Working pressure: 34.5 MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Quantity: 1

Same system

Diagram Pipe No. 20

Installation route: 大臂油缸

Length: 850 mm
Specification: DN16;4SP-10;34.5Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

Diagram Pipe No. 28

Installation route: Bucket cylinderOriginal Chinese: 铲斗油缸

Length: 1,350 mm
Specification: DN19;4SP-12;35Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

Diagram Pipe No. 36

Installation route: 大臂左3/左4

Length: 1,350 mm
Specification: DN16;4SP-10;34.5Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
