Individual hose record
73050200F747 Hose Repair Specifications
Excavator · Sunward · SWE215E-3H · Attachments – Lock Valve
Finished length570 mm
Locate this hose

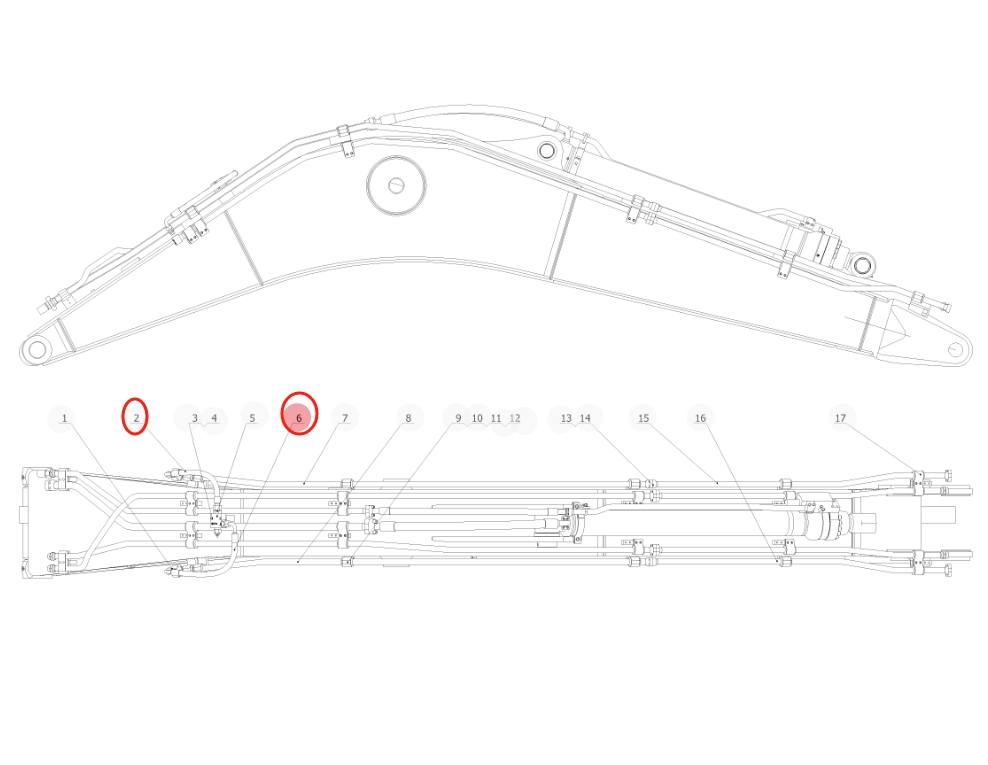

Installation diagram — Pipe No. 2
Locate Pipe No. 2 in the diagram, then confirm part number 73050200F747 before removing the hose.
Repair specifications
- Part number
- 73050200F747
- Diagram pipe number
- 2
- Installation route
- 大臂(后段)~卸压安全阀(破碎器)
- Hose specification
- DN20;6SH-12;35MPa
- Finished length
- 570 mm
- Working pressure
- 35 MPa
- Left fitting
- 公制内螺纹24°锥带O形圈-重型
- Right fitting
- 90°公制内螺纹24°锥带O形圈-重型
- Quantity
- 1
