Individual hose record

DS2053827 Hose Repair Specifications

Excavator · Doosan · DX57W-5 · Hydraulic Tank

Finished length1,650 mm

Locate this hose

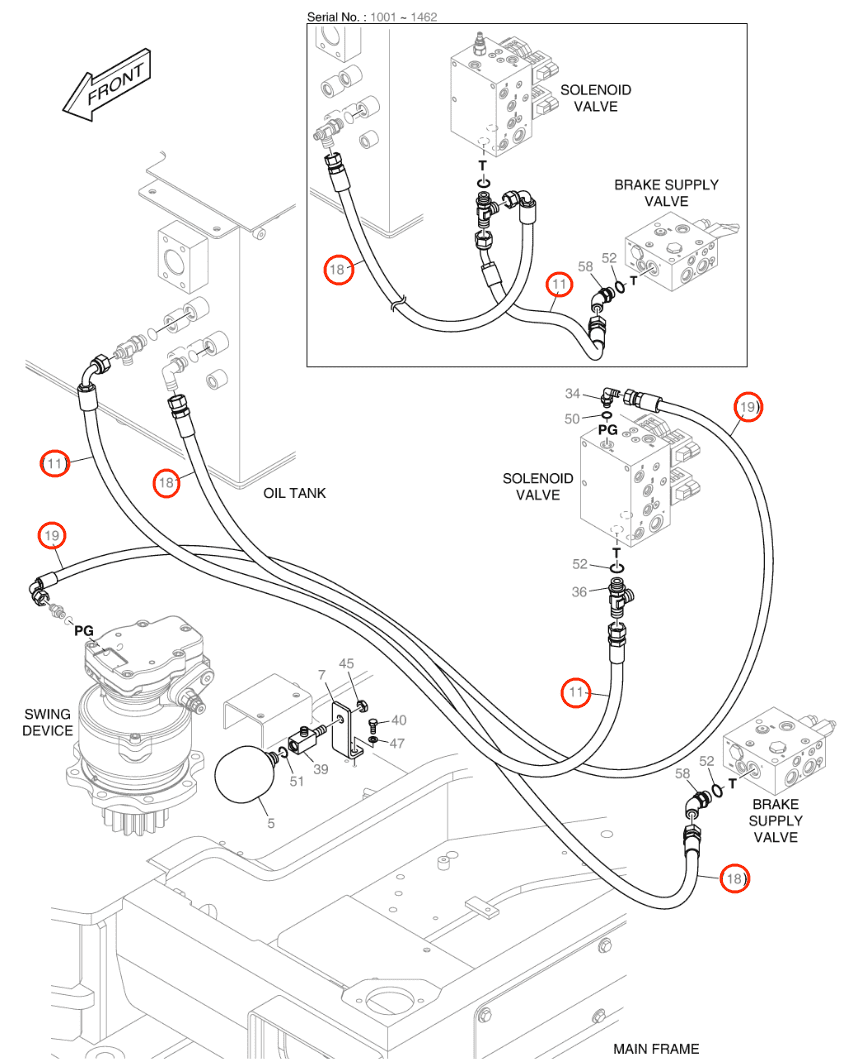

Installation diagram — Pipe No. 11

Locate Pipe No. 11 in the diagram, then confirm part number DS2053827 before removing the hose.

Part number: DS2053827
Diagram pipe number: 11
Installation route: 液压油箱~电磁阀T口
Hose specification: DN13;1SN-08;16MPa
Finished length: 1,650 mm
Working pressure: 16 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Quantity: 1

Same system

Diagram Pipe No. 11

Installation route: 液压油箱~电磁阀T口

Length: 500 mm
Specification: DN13;1SN-08;16MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 45° elbow, British female thread, 60° external cone seatOriginal Chinese: 45°英制内螺纹60°外锥
